Equipped With

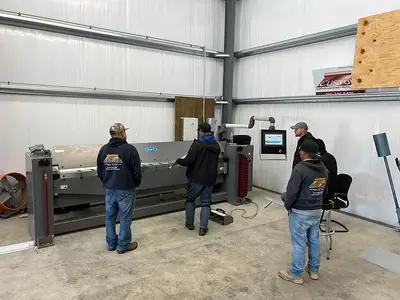

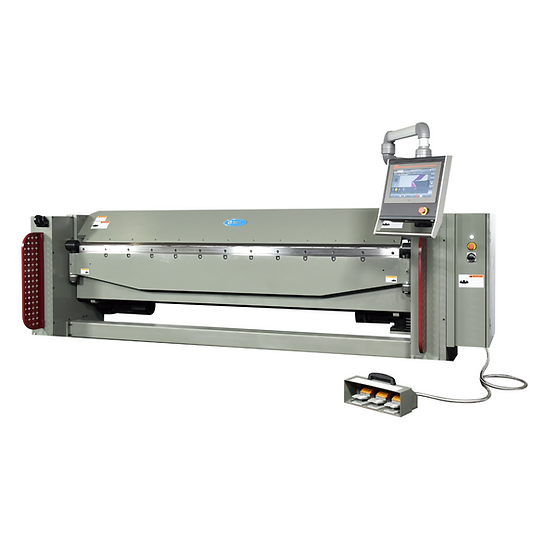

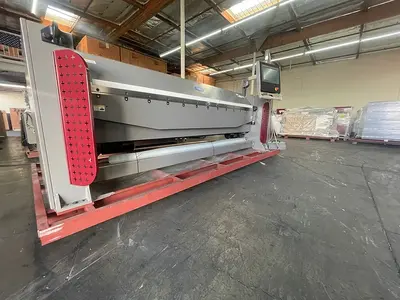

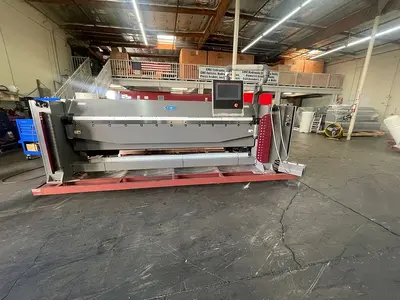

NEW 10' X 14GA - GMC MODEL EFM-1014CNC SHEET METAL FOLDER
ISO 9001 certified
Designed in US and Taiwan quality Machine
Meet OSHA and CE safety standard
ESA CNC control, made in Italy
Max. 99 bends per program
Upto 2000 Programs Storage
Profiles library with graphics
Programmable Radius Bend
Programmable Angle/ Angle Correct
48” CNC back gauge with table and fingers
Hardened nose bar and table, up to 48HRC
Comes with one 1” Insert Bar and one ½” Insert Bar
Yaskawa Servo motors and Drives
Schneider electrical components
All steel construction for maximum rigidity
Meet OSHA standard, to start the program, need to press foot pedal twice
Safety type foot pedal with handle and E-stop switch
Safety 24V low voltage & overload protection
Need a step up transformer if power supply is 208V 3-Phase
One year industrial warranty for parts
OPTIONAL EQUIPMENT
1/2” thick insert bar for ½” min. reverse bend,capacity mild steel 28-20Ga - $1,950.00
One day on-site training - $4,995.00
SPECIFICATIONS
Capacity:
Mild Steel
14 Ga.
Stainless Steel
18 Ga.
Close hemming
26 Ga.
Open hemming
24 Ga.
Bending Length Capacity
10'1"
Bend Angle Degree, programmable
0-135 degree
Hemming capacity, mild steel
20 Ga.
Hemming capacity, stainless steel
24 Ga.
Large Beam Opening/clamping opening
4-7/8"
Min. Reverse Bend
1/2"
Max, Table Back Gauge Distance
48-3/8"
Min. Table Back Gauge Distance
1/2"
Back Gauge Repeatability
0.0039"
Back Gauge Table Height
35-3/4"
Motor for Bending Leaf
4 HP 3 Phase 35A
Prewired: 220VAC
Servo motor for back gauge
2 HP 3-Phase
220VAC
Clamping Motor
1-1/2 HP 3-Phase
Prewired: 220VAC
Machine Weight:
Shipping Weight:
9,850 LBS
10,150 LBS
Machine Size (LxWxH)
Shipping Dimensions:
168" x 79" x 67"
174" x 80" x 71"
