Equipped With

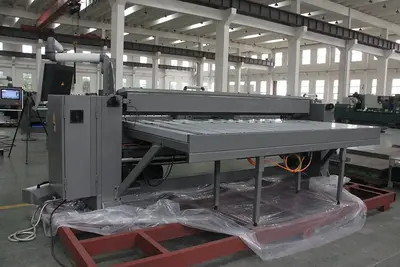

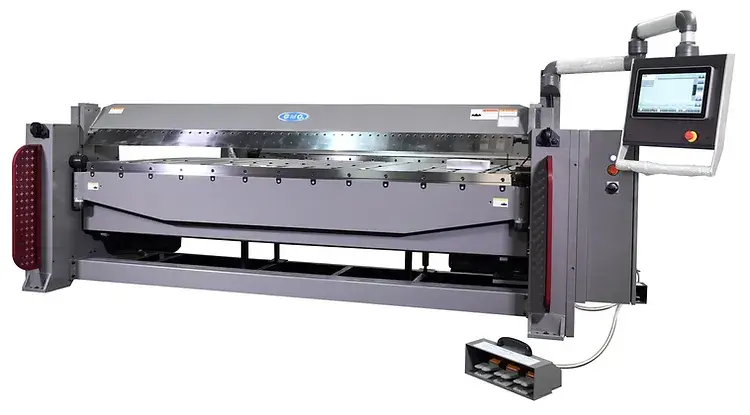

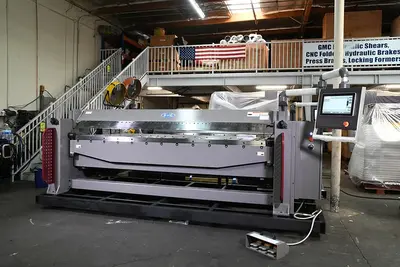

NEW 10' X 14GA - GMC MODEL EBB-1014CNC SHEET METAL FOLDER/BOX AND PAN BRAKE
ISO 9001 certified
Designed in US and Taiwan quality Machine
Meet OSHA and CE safety standard

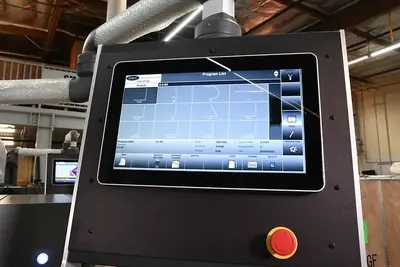

ESA S840 CNC control, made in Italy
Max. 99 bends per program
Upto 2000 Programs Storage
Profiles library with graphics
Programmable Radius Bend
Programmable Angle/ Angle Correct
48” CNC back gauge with table and fingers
One piece 10' long straight finger
Comes with one 1” Insert Bar and one ½” Insert Bar
Yaskawa Servo motors and Drives
Schneider electrical components
All steel construction for maximum rigidity
Meet OSHA standard, to start the program, need to press foot pedal twice
Safety type foot pedal with handle and E-stop switch
Safety 24V low voltage & overload protection
Need to step up transformer if the power supply is 208V, 3 phase
One year industrial warranty for par
OPTIONAL EQUIPMENT
One day on-site training - $4,995.00
SPECIFICATIONS
Specifications:
GMC EBB-1014CNC
Capacity
Mild Steel
Stainless Steel
Close hemming with one piece finger
Open hemming
14Ga.
18Ga.
26Ga.
24Ga.
Bending length capacity
10’1”
Bend Angle Degree, programmable
0- 135 degree
Max depth of box or pan
4”
Large Beam Opening/clamping opening
4-7/8”
Min. Reverse Bend
1/2”
Max. Table Back Gauge Distance
Min. Table Back Gauge Distance
48-3/8”
1/2”
Back Gauge Repeatability
0.0039”
Back Gauge Table height
35-3/4”
Motor for bending leaf
4HP, 220V,3phase
Servo motor for back gauge
Clamping motor
2HP ,220V, 3phase
1-1/2HP , 220V, 3phase
Amperage Draw
35A
Machine weight , LBS
Shipping weight
Machine dimensions, LWH
Shipping dimensions
9,850 LBS
10,150 LBS
168x79x67”
174x80x71”
