Equipped With

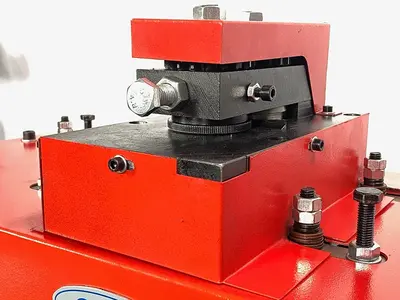

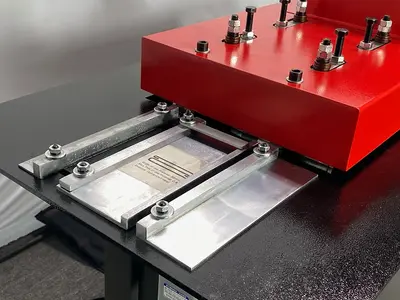

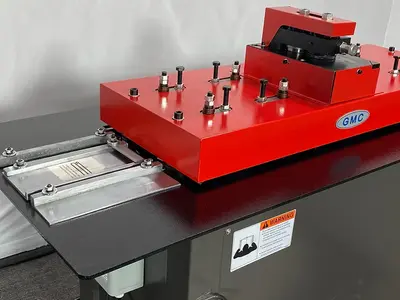

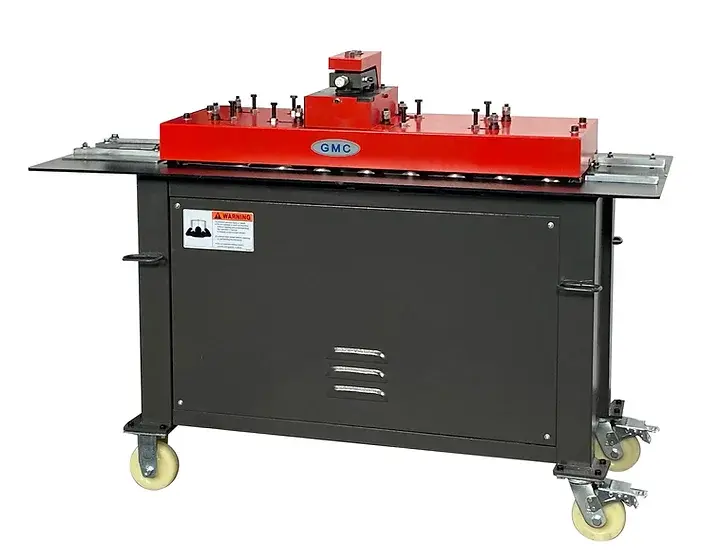

NEW 18 GAUGE PITTSBURGH MODEL PL-18E LOCKFORMER
ISO 9001 certified
4HP Heavy Duty AC main motor, 220V, 3 phase
Heavy welded all steel construction for maximum rigidity
It’s a Triplex, standard rolls include S & Drive (Slip & Drive Cleat), Drive Cleat, Double Seam, Pittsburgh Lock, Power Flanger, 5 in 1, all rolls are installed.
Heavy welded all steel construction for maximum rigidity
ACME side can be operated at same time
One year warranty for parts
STANDARD EQUIPMENT
Standard Pittsburgh Attachment # PA-18E, installed
Slip & Drive Roll (S & Drive)# SDR-18E , installed
Drive Cleat Roll # DCR-18E, installed
Double Seam Roll # DSR-18E, installed
Power Flanger # PF-18E, installed
OPTIONAL EQUIPMENT
Right Angle Roll # RAR-18E, ¼” | 3/8” & ½” - $995.00
Capacity:
Pittsburgh Lock
26 Ga. - 18 Ga.
S Drive Lock
26 Ga. - 22 Ga.
Right Angle Lock
26 Ga. - 18 Ga.
Drive Cleat Lock
26 Ga. - 22 Ga.
Double Seam Lock
26 Ga. - 18 Ga.
Power Flange 1/4:
26 Ga. - 18 Ga.
Depth of Pocket
1/2"
Feeding Speed
23 FPM
Main Motor
4 HP, 3 Phase 15 AMP
Prewired: 220VAC
Weight Approx
998 LBS
Machine Dimensions (LxWxH):
Shipping Dimensions:
60"x26"x46"
63"x27"x48"
