Equipped With

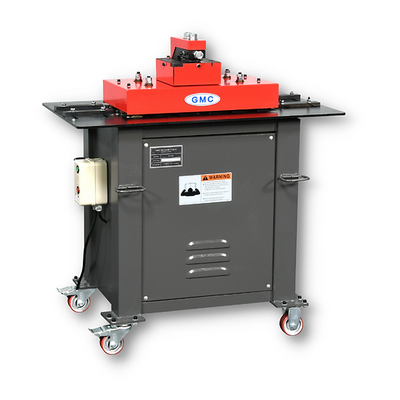

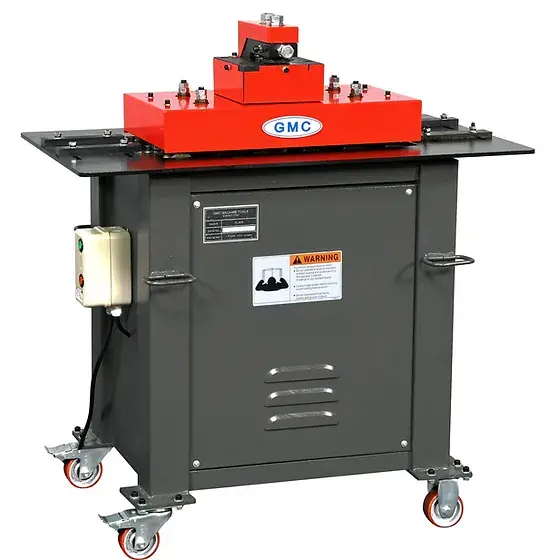

NEW 16 GAUGE PITTSBURGH MODEL PL-16E LOCKFORMER
16 gauge capacity: The PL-16E can handle sheet metal up to 16 gauge, making it suitable for a wide range of applications.
Creates tight, interlocking joints between two pieces of sheet metal
Made with high-quality materials and construction for durability and longevity
Maintenance-friendly design: The machine is designed for easy maintenance, with quick-access panels that allow for easy cleaning and lubrication.
Backed by a 1-year parts warranty for peace of mind
Compact and portable design for easy storage and transport
Compatible with a variety of Lockformer accessories and attachments for added versatility and functionality
ISO 9001 certified
3 HP Heavy Duty AC main motor, 220V, 3 phase
Standard Pittsburgh Attachment
Standard Round Power Flange Attachment, Double Seam Roll and Drive Cleat Roll (power flange attachment can only do radius parts)
ACME side can be operated at same time
Heavy duty caster wheels for easy moving
STANDARD EQUIPMENT
Standard Pittsburgh Attachment # PA-16E, installed
Power Flange Attachment # FA-16E, installed
Drive Cleat Roll # DCR-16E, installed
Double Seam Roll # DSR-16E, installed
OPTIONAL EQUIPMENT
RAR-16E, right angle roll set for PL-16E - $795.00

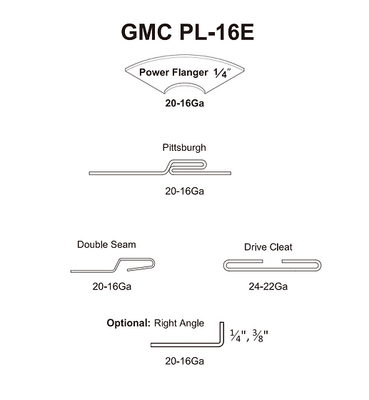

Capacity:
Pittsburgh Lock
20 Ga. - 16 Ga.
Double Seam Lock
20 Ga. - 16Ga.
Drive Cleat Lock
24 Ga. - 22 Ga.
Power Flange 1/4"
20 Ga. - 16 Ga.
Depth of pocket
1/2"
Feeding speed
23 FPM
Main Motor
3 HP, 3 Phase 10 AMP
Prewired: 220VAC
Weight
628 LBS
Machine Dimensions (LxWxH):
Shipping Dimensions:
43" x 27" x 48"
43" x 27" x 48"
