Equipped With

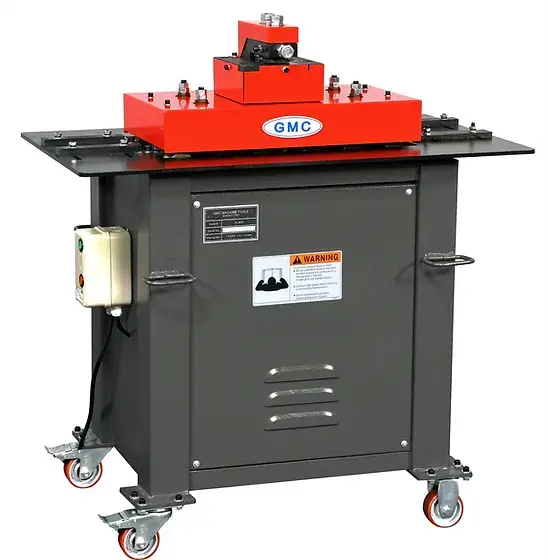

NEW 20 GAUGE PITTSBURGH MODEL PL-20E LOCKFORMER
With its advanced features and robust construction, the Lockformer Pittsburgh Machine PL-20E is an excellent choice for sheet metal fabrication professionals looking for a reliable, versatile, and efficient machine.
20 gauge capacity: The PL-20E can handle sheet metal up to 20 gauge, making it suitable for a wide range of applications.
Creates tight, interlocking joints between two pieces of sheet metal
Made with high-quality materials and construction for durability and longevity
Maintenance-friendly design: The machine is designed for easy maintenance, with quick-access panels that allow for easy cleaning and lubrication.
Backed by a 1-year parts warranty for peace of mind
Compact and portable design for easy storage and transport
Compatible with a variety of Lockformer accessories and attachments for added versatility and functionality
ISO 9001 certified
1.5 HP Heavy Duty AC main motor, 110V
Standard Pittsburgh Attachment
Standard Round Power Flange Attachment, Double Seam Roll and Drive Cleat Roll (power flange attachment can only do radius parts)
ACME side can be operated at same time
Heavy duty caster wheels for easy moving
STANDARD EQUIPMENT
Standard Pittsburgh Attachment # PA-20E, installed
Power Flange Attachment # FA-20E, installed
Drive Cleat Roll # DCR-20E, installed
Double Seam Roll # DSR-20E, installed
OPTIONAL EQUIPMENT
RAR-20E, 1/4", 3/8" right angle roll set for PL-20E, 26 Ga. - 20 Ga. - $795.00
SPECIFICATIONS

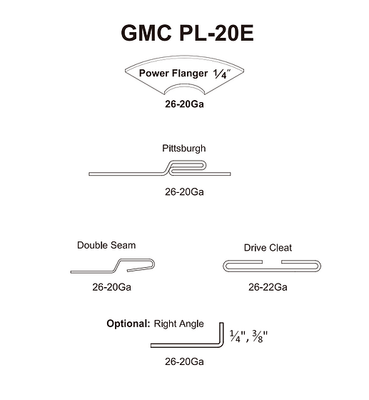

Capacity:
Pittsburgh Lock
26 Ga. - 20 Ga.
Double Seam Lock
26 Ga. - 20 Ga.
Drive Cleat Lock
26 Ga. - 22 Ga.
Power Flanger 1/4"
26 Ga. - 20 Ga.
Depth of pocket
5/16"
Feeding speed
32 FPM
Main Motor
1.5 HP, 10 AMP
Prewired: 110VAC
Weight
458 LBS
Machine Dimensions (LxWxH):
Shipping Dimensions:
36" x 23" x 43"
38" x 25" x 42"
