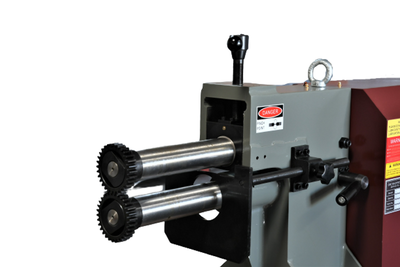

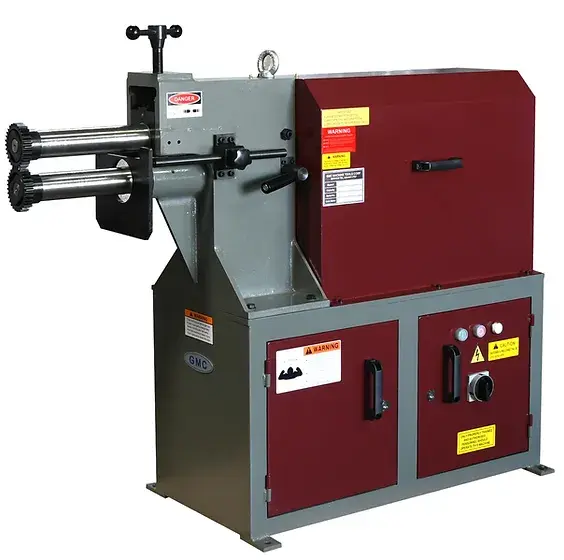

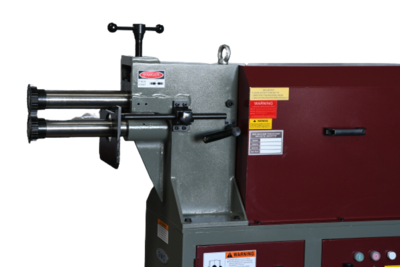

NEW GMC BBM-08E

Equipped With
NEW GMC MODEL BBM-12E POWER BEAD ROLLER
ISO 9001 certified
Heavy Duty cast iron construction
(4) sets of standard dies
S1 - Shear die
S2 - Step die (10mm)
S3 -  Bead die (R6mm)
S4 - Step die (8mm)
Easy adjustment and operation
Ideal to make Ogee Bead, Turning, Wiring, Crimping, Burring, Elbow Edging, Single Bead, flange, slitting, flattening, offset
OPTIONAL EQUIPMENT
Optional die set (extra)
$475.00
Custom profile die set
$575.00
SPECIFICATIONS


Max Capacity
Mild Steel
Stainless Steel

8 Ga.
12 Ga.
Throat Depth
12"
Cylinder Length
9"
Cylinder Speed
15 RPM
Main Motor
3 HP 3 Phase
Prewired: 220VAC
Optional: 440VAC
Overall Dimensions (LxWxH)
61" x 20" x 50"
Machine Weight
770 lbs.
