NEW GMC BBM-12E

Equipped With

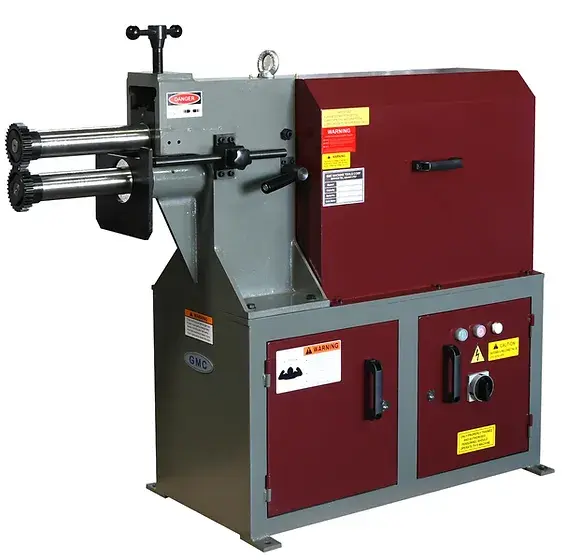

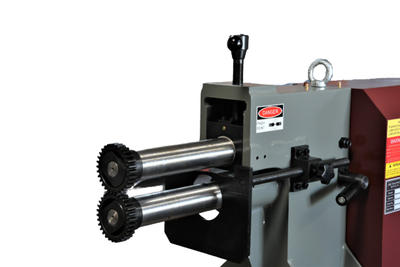

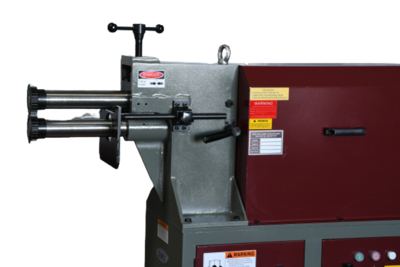

NEW GMC MODEL BBM-12E POWER BEAD ROLLER
ISO 9001 certified
Heavy Duty cast iron construction
(4) sets of standard dies
S1 - Shear die
S2 - Crimp die (RD)
S3 - Bead die (R0.25")
S4 - Step die (10mm)
Easy adjustment and operation
Ideal to make Ogee Bead, Turning, Wiring, Crimping, Burring, Elbow Edging, Single Bead, flange, slitting, flattening, offset
OPTIONAL EQUIPMENT
Optional die set (extra)
$475.00
Custom profile die set
$575.00
SPECIFICATIONS
Max Capacity
Mild Steel
Stainless Steel

12 Ga.
16 Ga.
Throat Depth
11"
Cylinder Length
8"
Cylinder Speed
20 RPM
Main Motor
2 HP 3 Phase
Prewired: 220VAC
Optional: 440VAC
Overall Dimensions (LxWxH)
55" x 20" x 47"
Machine Weight
530 lbs
