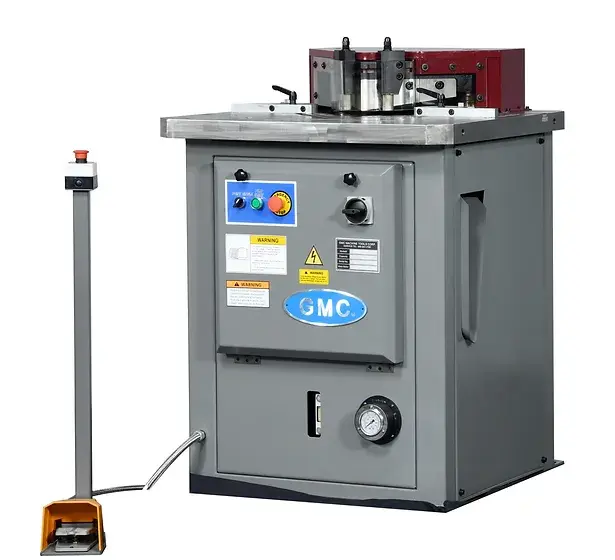

NEW GMC HN-25HA

Equipped With
NEW 1/4" x 10" GMC MODEL HN-25HA HYDRAULIC SHEET METAL NOTCHER WITH FIXED ANGLE
STANDARD FEATURES
ISO 9001 certified
Super large table
Milled table surface with engraved scales on left and right side of the table top
12” combination hold down and stop bars
All steel construction
Safety finger guards
(2) quick change gauges
Foot pedal control
Quiet hydraulic system
One year warranty
SPECIFICATIONS
Max. capacity: Mild Steel (C.R.S.)
Max. capacity: Stainless Steel
Min. notching thickness
Notching angle, fixed angle
1/4"
3/16"
22 Ga.
90 degree
Max. cutting lenth
10"
Stroke per minute
27
Table dimensions, L x W
33" x 27"
Hydraulic oil tank capacity
9 Gal. Shell #68HD
Main Motor
7 1/2 HP, 3 Phase, 25A
Prewired: 220VAC
Optional: 440VAC 220V 15A
Machine Weight
2650 LBS
Machine Dimensions, (LxWxH):
Shipping Dimensions, (LxWxH):
39" x 38" x 49"
47" x 41" x 56"
