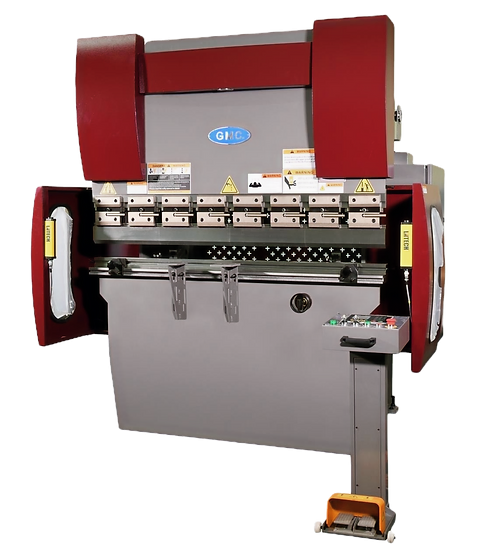

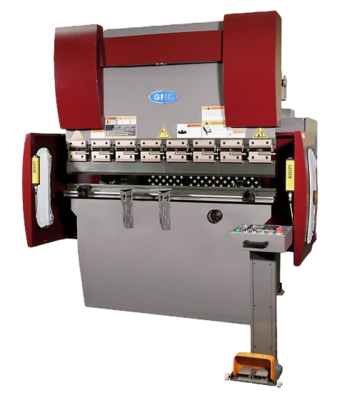

NEW GMC HPB-3305CNC

Equipped With
NEW 33 TON X 5' GMC MODEL HPB-3305CNC HYDRAULIC PRESS BRAKE
ISO 9001 certified
Meet OSHA and CE safety standard
Easy-to-use programmable Estun E21 control
Easy programming, stores 40 programs
Estun E21 control keep a pice count for large production run
Japan Yaskawa drive
Precision ball screws for 24” back gauge

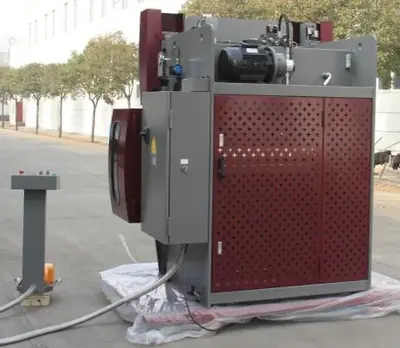

Germany Rexroth  hydraulic system
Schneider electrical components
All steel construction for maximum rigidity
Hydraulic logic system centrally located and quiet
Safety type foot pedal with E21 screen, control panel and E-stop switch
Safety 24V low voltage & overload protection
One year industrial warranty for parts
STANDARD EQUIPMENT
 Estun E21, 2 Axis Controller
( 2 )  24” front support arms

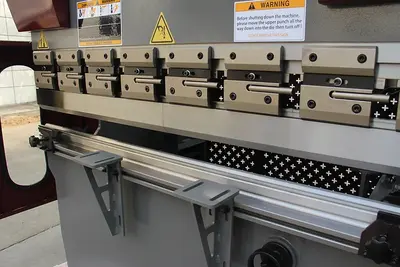

Quick release segmented ( American Style Tooling ) punch holder
Full Length Gooseneck Punch HRC 50  Full Length Vee Die with 6 assorted sizes  HRC 50,1”,3/4”,5/8”, ½”, 3/8”, ¼”
Lntech Light Curtain System
Side and Back Safety Fence
Movable Foot Pedal with E21 screen, control panel ,and E-stop meet OSHA safety standard
On-site training, one day…………………………….. $4995.00
Maximum Pressure
33 Tons
Bending Lenght Capacity
63" (5'3")
Distance Between Uprights (housing)
51"
Ram Stroke Travel
Cylinder Travel Adjustment (max)
4"
2"
Table Width
6"
Distance Between Table and Ram
13-1/4"
Throat Depth
8"
Back Gauge Distance
21"
Back Gauge Repeatability
.008"
Y-Axis Repeatability
.008"
Approach speed, inch / second
Working speed, inch / second
Return speed, inch / second
3.5”
0.39”
2.75”
Main motor:

Motor for back gauge:

Motor for bending angle
setting:
7-1/2 HP, 3 Phase 30 AMP
Prewired: 220VAC (+/- 10%)

1 HP, 3 Phase
220VAC (+/- 10%)

1/2HP, 3 Phase
220VAC, (+/- 10%)
Hydraulic oil tank capacity:

Recommended Oil:
20 Gal.

Hydraulic Oil Shell #68HD
Machine weight:
Machine size, L x W x H:
Shipping dimensions:
5,350 LBS
91"x56"x87”
91"x56"x87"
Warranty for Rotary Phase Convertor Users : Electrical Parts Warranty is not available if A Rotary Phase Convertor is used. Mechanical parts warranty only
Note: the following models do not work with rotary phase converters:
All EPS models, HS-0825E,HS-0425E, HS-0625E,HS-1010E, HS-1025E, HBB-1010NC, GML-(ALL LATHES)
HPB-4504CNC, HPB-7006CNC, HPB-7006CNC-3R, and HPB-3305CNC
These models listed above cannot run on any phase converters, Warranty will be voided.
GMC will pre-wire the Phase converter to our machine and it is ready to use.
