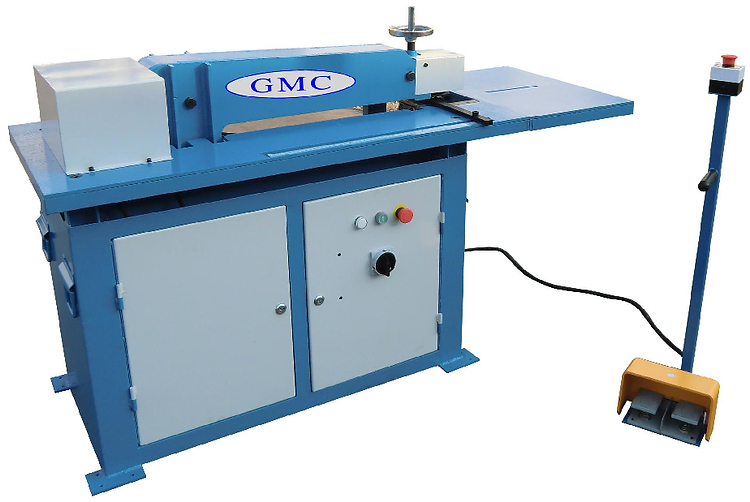

NEW GMC PS-16

Equipped With
NEW 16 GAUGE X 47" GMC MODEL PS-16 SHEET METAL SLITTER
ISO 9001 certified
2HP Heavy Duty AC main motor, 220V
Heavy welded all steel construction
Standard heavy duty cabinet stand
Heat treated slitting rolls
Quick adjusting back gauge
Built in easy to read scale
Removable food pedal with E-stop
One year warranty for parts
STANDARD EQUIPMENT
1 Set of Slitting dies (pre-installed)
35" Steel Cabinet Stand
Quick change back gauge
SPECIFICATIONS
Max. Capacity:
Mild Steel
16Ga.
Max. Slitting Width
47"
Min. Slitting Width
1.25"
Throat Depth
Cutting Circle Diameter
4" - 24"
13" to 30"
Feeding Speed
16 FPM
Main Motor
2 HP, 220V or
440V, 3 Phase
Net Weight
668 lbs.
Machine Dimensions LxWxH
53" x 30" x 45"
