NEW GMC PRB-55

Equipped With

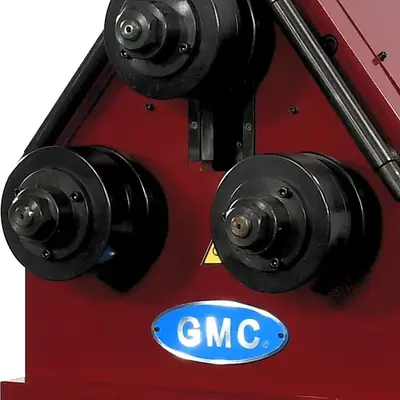

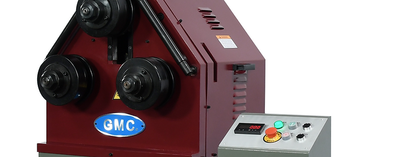

NEW GMC MODEL PRB-55 ANGLE ROLL BENDER WITH MANUAL POSITIONING
ISO 9001 certified
2” schedule 40 pipe is the maximum bending capacity, 2.5” round tube 14 Ga. and 2” square tube
Heavy Duty 3HP AC main motor
1 top forming roll (manually driven)
2 driven bottom rolls
Robust, all steel and welded framework
1-year parts only warranty and lifetime tech support by video and phone
Equipped with 1-set of universal forming rolls suitable for many applications
Left and right guide rollers (easily adjustable)
Foot pedal (controls forward and reverse
Optional roller sets for pipe & round tubing, any size, one set (3 rolls) - $995.00
Optional anti-twisting attachment - $595.00

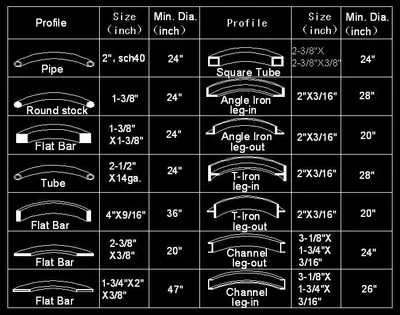

Model
PRB-55
Pipe Capacity
2” schedule 40 / Min. Dia.24”
Tube Capacity
2-1/2”x14 Ga. (wall) / Min. Dia. 24”
Solid Round Tube
1-3/8”  / Min. Dia. 24”
Square Tube
2”x2”x3/16” (wall) / Min. Dia. 24”
Solid Square Tube
1-3/8”x1-3/8” / Min. Dia. 24”
Solid Flat Bar
4”x9/16” (wall) / Min. Dia. 36”
Solid Flat Bar
2-3/8”x3/8” (wall) / Min. Dia. 20”
Angle Flat Bar
2-3/4”x2”x3/8” (wall) / Min. Dia. 47”
Angle Iron Leg-In
2”x3/16”(wall) / Min. Dia. 28”
Angle Iron Let-Out
2”x3/16”(wall) / Min. Dia. 20”
T-Iron Leg-In
2”x3/16” (wall) / Min. Dia. 28”
T-Iron Leg-Out
2”x3/16” (wall) / Min. Dia. 20”
Channel Leg-In
3-1/8”x1-3/4”x3/16” / Min. Dia. 26”
Channel Leg-Out
3-1/8”x1-3/4”x3/16” / Min. Dia. 24”
Dia. of Roller
7 1/2"
Dia. of Roller Shaft
2"
Roller Speed
16 RPM
Motor
3 HP, 220VAC 3-Phase
(Optional 440VAC)
Dimensions
40" x 35" x 65"
Weight
1,050 lbs.
AVAILABLE ROLL SETS
34T-PRB55
ROLL SET FOR 3/4 INCH TUBING FOR GMC PRB-55 OR 55H
1T-PRB55
ROLL SET FOR 1 INCH TUBING FOR GMC PRB-55 OR 55H
114T-PRB55
ROLL SET FOR 1-1/4 INCH TUBING FOR GMC PRB-55 OR 55H
112T-PRB55
ROLL SET FOR 1-1/2 INCH TUBING FOR GMC PRB-55 OR 55H
2T-PRB55
ROLL SET FOR 2 INCH TUBING FOR GMC PRB-55 OR 55H
212T-PRB55
ROLL SET FOR 2-1/2 INCH TUBING FOR GMC PRB-55 OR 55H
34P-PRB55
ROLL SET FOR 3/4 INCH PIPE FOR GMC PRB-55 OR 55H
1P-PRB55
ROLL SET FOR 1 INCH PIPE FOR GMC PRB-55 OR 55H
114P-PRB55
ROLL SET FOR 1-1/4 INCH PIPE FOR GMC PRB-55 OR 55H
112P-PRB55
ROLL SET FOR 1-1/2 INCH PIPE FOR GMC PRB-55 OR 55H
2P-PRB55
ROLL SET FOR 2 INCH PIPE FOR GMC PRB-55 OR 55H
