Equipped With

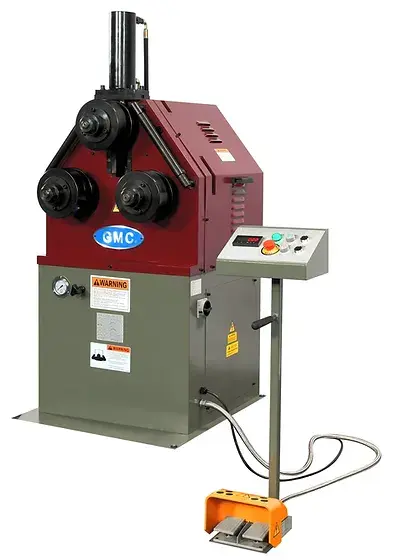

NEW GMC MODEL PRB-75H ANGLE ROLL BENDER WITH 3" SQUARE DIES
ISO 9001 certified
Hydraulic top roller positioning with digital readout
Max capacity: 4” tube and 3-1/2” pipe
Heavy Duty 5-1/2HP AC main motor
Heavy welded all steel construction
Quiet compact hydraulic system
Custom-made rollers are available per request, such as steel, nylon, etc.
One year industrial warranty for parts
One set of universal combination rollers can do most works, except round tubes & pipes
Foot pedal
Optional roller sets for pipe & round tubing, any size, one set (3-rolls) - $1,495.00
Optional anti-twisting attachment - $895.00
Dia. of Roller
8 1/2"
Dia. of Roller Shaft
3"
Roller Speed
16 RPM
Motor
5-1/2" HP, 220V/440V, 3 Phase
Dimiensions
51" x 45" x 72"
Weight (with top roller hydraulic positioning)
2,450 lbs.
Oil Capacity
28L =8 Gal
AVAILABLE ROLL SETS ($1,495.00/Set)
34T-PRB-75H
ROLL SET FOR 3/4 INCH TUBING FOR GMC PRB-75H
1T-PRB-75H
ROLL SET FOR 1 INCH TUBING FOR GMC PRB-75H
114T-PRB-75H
ROLL SET FOR 1-1/4 INCH TUBING FOR GMC PRB-75H
112T-PRB-75H
ROLL SET FOR 1-1/2 INCH TUBING FOR GMC PRB-75H
2T-PRB-75H
ROLL SET FOR 2 INCH TUBING FOR GMC PRB-75H
212T-PRB-75H
3T-PRB-75H
ROLL SET FOR 2-1/2 INCH TUBING FOR GMC PRB-75H
ROLL SET FOR 3 INCH TUBING FOR GMC PRB-75H
34P-PRB-75H
ROLL SET FOR 3/4 INCH PIPE FOR GMC PRB-75H
1P-PRB-75H
ROLL SET FOR 1 INCH PIPE FOR GMC PRB-75H
114P-PRB-75H
ROLL SET FOR 1-1/4 INCH PIPE FOR GMC PRB-75H
112P-PRB-75H
ROLL SET FOR 1-1/2 INCH PIPE FOR GMC PRB-75H
2P-PRB-75H
ROLL SET FOR 2 INCH PIPE FOR GMC PRB-75H
212P-PRB-75H
3P-PRB-75H
ROLL SET FOR 2-1/2 INCH PIPE FOR GMC PRB-75H
ROLL SET FOR 3 INCH PIPE FOR GMC PRB-75H
