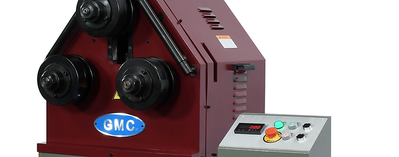

NEW GMC MODEL PRB-55-1PH ANGLE ROLL BENDER WITH MANUAL POSITIONING & SINGLE PHASE
ISO 9001 certified

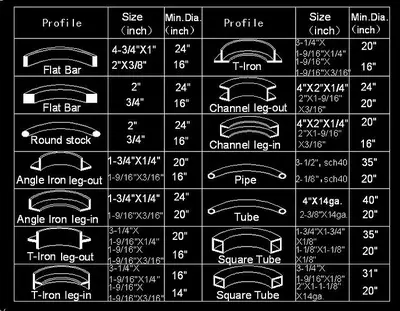

2” schedule 40 pipe is the maximum bending capacity, 2.5” round tube 14 Ga. and 2” square tube
Easy to operate in two positions; vertically and horizontally on its back
DRO - Digitally displays your exact position and ensures repeatability
Heavy Duty 4HP AC main motor

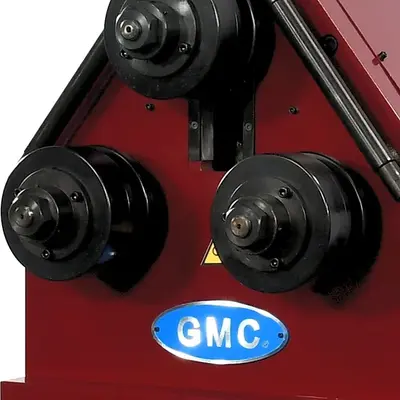

1 - Top forming roll (hydraulic driven)
2 - Driven bottom rolls
Robust, all steel and welded framework
Quiet, compact, hydraulic system that ensures precision and improves productivity
Adjustable pressure control valve
1-year parts only warranty and lifetime tech support by video and phone
Equipped with 1-set of universal forming rolls suitable for many applications
Digital Readout (ensures repeatability and digitally displays your exact position)
Left and right guide rollers (easily adjustable)
Foot pedal (controls forward and reverse)
Digital Readout (digital display)
4-metal support legs for horizontal position
Optional roller sets for pipe & round tubing, any size, one set (3 rolls) - $995.00
Optional anti-twisting attachment - $595.00
Specifications
Model
PRB-55H-1PH
Roll Adjustment
Hydraulic Driven
Dia. of roller
7-1/2”
Dia. of roller shaft
2”
Roller speed
16 RPM
Main Motor
4 HP Single Phase
Prewired: 220VAC | 15A
Dimensions
40in x 35in x 65in
Weight
1,120 LBS
Oil Tank Capacity
(only fill up 90%)
7 Gal.
Recommended Hydraulic Oil
Texaco-Rando HD-68 Hydraulic Oil
Shell AW-68 Hydraulic Oil
RECOMMENDED ROLL SETS
34T-PRB55
ROLL SET FOR 3/4 INCH TUBING FOR GMC PRB-55 OR 55H
1T-PRB55
ROLL SET FOR 1 INCH TUBING FOR GMC PRB-55 OR 55H
114T-PRB55
ROLL SET FOR 1-1/4 INCH TUBING FOR GMC PRB-55 OR 55H
112T-PRB55
ROLL SET FOR 1-1/2 INCH TUBING FOR GMC PRB-55 OR 55H
2T-PRB55
ROLL SET FOR 2 INCH TUBING FOR GMC PRB-55 OR 55H
212T-PRB55
ROLL SET FOR 2-1/2 INCH TUBING FOR GMC PRB-55 OR 55H
34P-PRB55
ROLL SET FOR 3/4 INCH PIPE FOR GMC PRB-55 OR 55H
1P-PRB55
ROLL SET FOR 1 INCH PIPE FOR GMC PRB-55 OR 55H
114P-PRB55
ROLL SET FOR 1-1/4 INCH PIPE FOR GMC PRB-55 OR 55H
112P-PRB55
ROLL SET FOR 1-1/2 INCH PIPE FOR GMC PRB-55 OR 55H
2P-PRB55
ROLL SET FOR 2 INCH PIPE FOR GMC PRB-55 OR 55H
