NEW GMC GML-2060

Equipped With

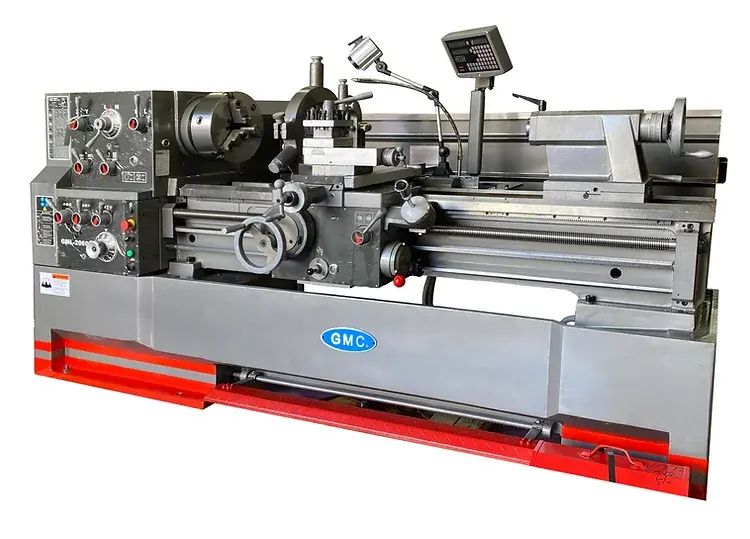

NEW 20" X 60" GMC MODEL GML-2060 HEAVY DUTY PRECISION GAP BED LATHE
ISO 9001 certified
1-Year Parts Only Warranty
Large spindle bore 3-1/8”
Spindle D1-8
Guideway width 12”
Main motor 10HP

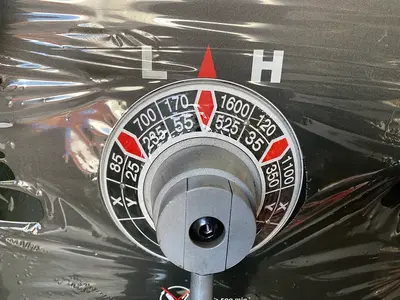

16 spindle speeds from 25-1,800 rpm, 12 speeds

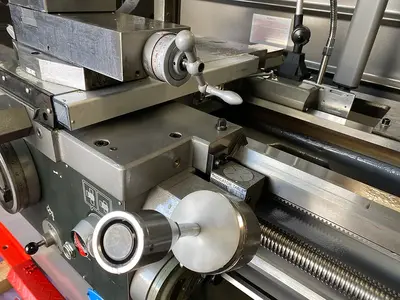

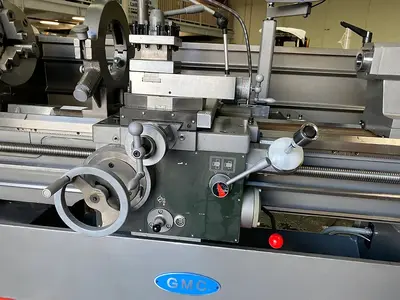

4-way rapid traverse on the carriage longitudinal and cross
60 kinds of inch threads, and 41 kinds of metric threads

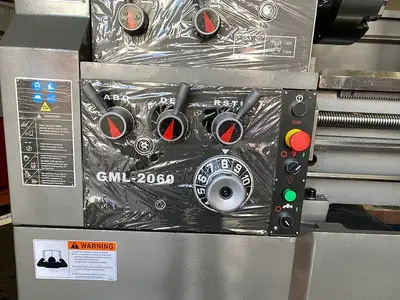

Threading and feeding rate change without changing gears
Spindle is balanced, hardened and precision ground
Spindle is supported at 3-point by high precision bearings
All gears and shafts are hardened and precision ground
Guideways induction hardened and precision ground
Automatic lubrication system in headstock and feed box
STANDARD EQUIPMENT

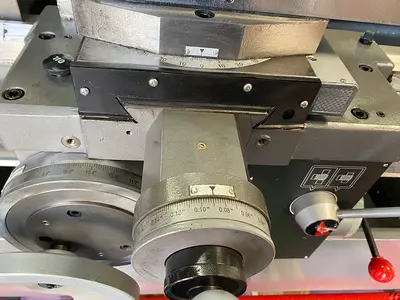

Free Taper turning attachment, , installed

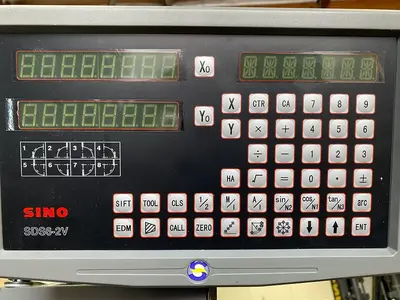

Free SINO DRO, installed
Chuck guard with safety shut off, made from metal
Automatic kick-out longitudinal carriage stop system

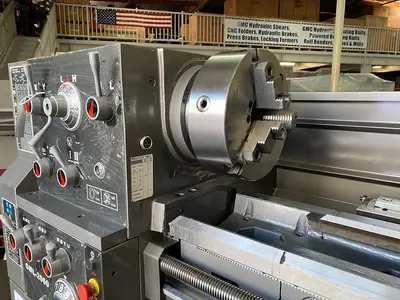

10” 3-jaw chuck with top reversible jaws, direct mount
12” 4-jaw chuck, direct mount
14” Face plate
1/2”-6” steady rest with roller jaws
7/8”-4-3/8” follow rest
Removeable gap

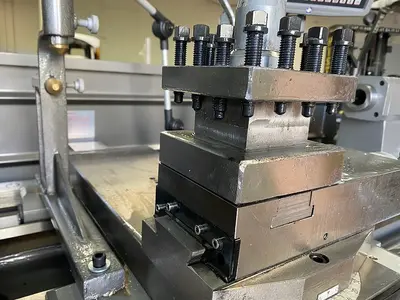

4-way tools post
Foot brake
Halogen Work light and coolant system
Full length splash guard
Dead centers
Thread chasing dial
Tool box and leveling pads
OPTIONAL EQUIPMENT
5-C Hand lever type collet closer, free install ....………………...           $2,250.00
33 pc 5C collet set, from 1/16”-1-1/16” by 32nd, Part# 900-0014..          $360.00
China ALORIS type QC tool post set # 3900-5260, 6 pcs ….           $575.00
Live Center MT4 #3900-5004 ............................................................          $165.00
¾  to 10-1/2” large steady rest with roller jaws ………………….          $995.00
Max. swing over bed
20"
Max. length of workpiece
60"
Max. swing over cross slide
12 1/2"
Max. Swing in gap
29-1/8"
Width of Bed
12"
Effective length in gap to spindle
6"
Effective length in gap to chuck jaws
3 1/2"
Spindle bore
3 1/8" | D1-8
Taper of spindle center
MT7

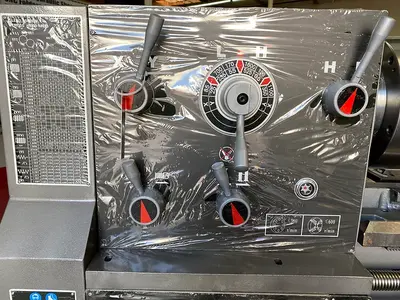

Spindle speeds
25-1,800 rpm / 12 steps
Longitudinal feeds
0.0011-0.063 IPR, 42 kinds
Cross feeds
0.0003-0.018 IPR, 42 kinds
Inch threads
2-112 TPI, 60 kinds
Metric threads
0.1-14 mm , 41 kinds
Diametral Pitch threads
4-112DP , 50 kinds
Module threads
0.1-7mm, 34 kinds
Max. travel of top slide
5"
Max. travel of cross slide
11 1/4"
Spindle length w/o chuck
Leadscrew length X TPI
17-1/2"
1 1/4" x 4 TPI

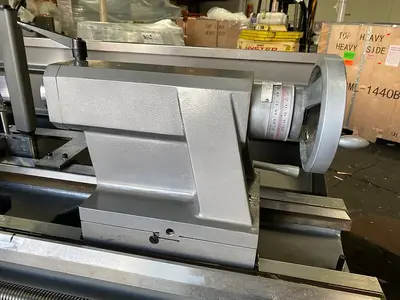

Diameter of tailstock quill
2-3/8”
Max. travel of tailstock quill
5-1/8”
Taper of tailstock quill center
MT4

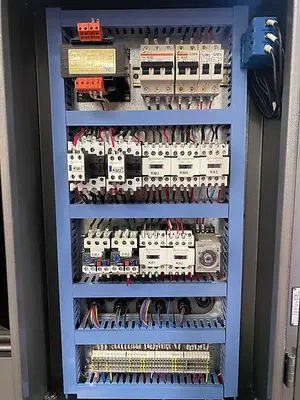

Main motor
10 HP 3 Ph.
Prewired: 220VAC / 35A
Optional: 440VAC / 20A

Coolant pump
1/8 HP 3 Ph.
Prewired: 220VAC
Optional: 440VAC
Net weight
5,750 lbs.
Overall dimensions, LxWxH
108" x 43" x 59"
Please note that this lathe is incompatible with the use of a rotary phase converter. Any attempt to purchase, install, or employ one, whether carried out by you or a professional service company, will automatically void the warranty. It is crucial to understand that any such actions are entirely the responsibility of the buyer. This disclaimer is intended to clearly convey that the utilization of a rotary phase converter to power or operate this metal lathe is not supported.
