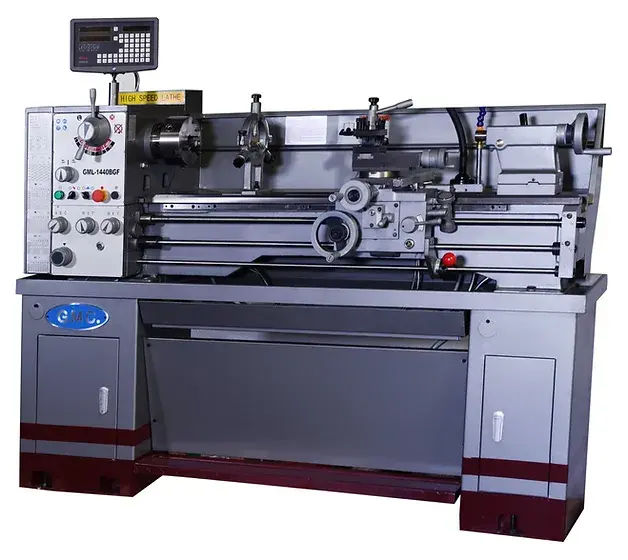

NEW 14" X 40" GMC MODEL GML-1440BGF-3 HIGH SPEED GEARED HEAD ENGINE LATHE
ISO 9001 certified
1-Year Parts Only Warranty
Lifetime Tech Support by phone and video
Full Geared-head precision Metal Lathe with foot brake
Quick-change gearbox with fast and easy threading set up
3 HP heavy duty main motor runs on 220V Single-Phase power
1.5” Spindle bore
Spindle Nose D1-4 Camlock
Heavy Duty guideway; 7.5” width
8 spindle speeds ranging from 70-2,000 RPM
56 kinds of imperial threads
44 kinds of metric threads

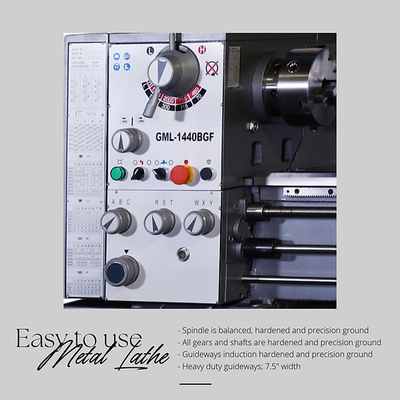

Spindle is balanced, hardened and precision ground
All gears and shafts are hardened and precision ground

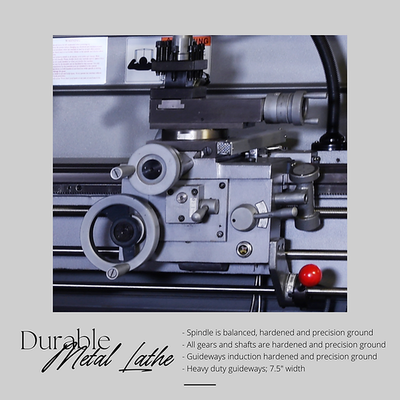

Guideways induction hardened and precision ground
Automatic lubrication system in headstock and feed box
Comes equipped with:

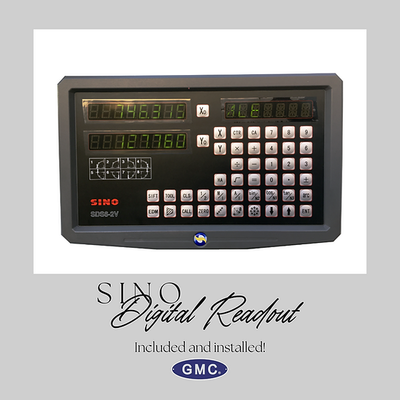

SINO (DRO) Digital Readout - Installed
Taper Attachment - Installed
6” 3-Jaw Chuck with reversible jaws
8” 4-Jaw Chuck with reversible jaws
10” Face Plate
3.75” Large Steady Rest
2” Follow Rest
Foot Brake
Coolant System
Metal Stand with 2 Cabinets
Halogen work lamp
4-Way Tool Post

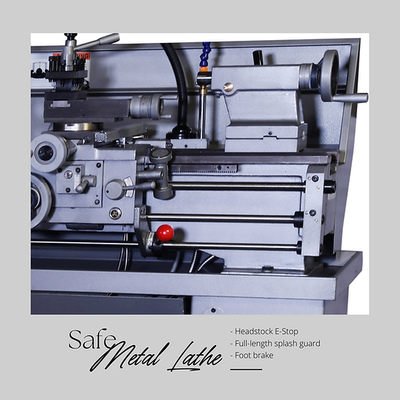

Full Length Splash Guard
2 – Dead Centers
1 – Reducing Sleeve
1 – Thread Chasing Dial
1 – Tool Box with maintenance tools
L A T H E C A P A C I T Y
Max. Swing Over Bed
14”
Max. length of workpiece
40”
Max. length of cutting
34”
Max. Swing Over Cross Slide
8.25”
Center Height
7”
Distance between centers
40”
Bed Width
7.5”
Bed Length
S P I N D L E
Spindle Nose
D1-4 Camlock
Spindle Bore
1.5”
Spindle Taper Nose
MT5 (Morse Taper #5)
Spindle Taper Sleeve
MT3 (Morse Taper #3)
Range of Spindle Speeds
70-2,000 RPM
Low Spindle Speeds
70/115/190/300 RPM
High Spindle Speeds
460/755/1255/2000 RPM
Steps of Spindle Speed
8 steps
F E E D
Range of Longitudinal Feeds
0.00168” - 0.11750”/rev.
IPR, 24 kinds
Range of Cross feeds
0.00046” - 0.03231” /rev.
IPR, 24 kinds
T H R E A D I N G
Imperial Threads QTY. / Speed
56 / 4-112 TPI
Metric Threads QTY. / Speed
44 / 0.1-7.0 mm
Diametral Pitch threads QTY. / Speed
32 / 16-112 DP
Module threads
34 / 0.1 – 1.75 mm
T A I L S T O C K
Tailstock Quill Diameter
1.5”
Tailstock Quill Taper
MT3 (Morse Taper #3)
Tailstock Quill Travel
4”
A P R O N
Compound Slide Travel
4.25”
Cross Slide Travel
7.25”
Cross Feed QTY. / Speed
0.014 – 0.380mm / rev
Leadscrew Diameter
7/8”
Feed Rod Diameter
3/4"
Max. Cutting Tool – 4 Way Tool Post
5/8”
M O T O R S & E L E C T R I C A L
Main motor
3 HP Three Phase
Power (prewired voltage)
220VAC
Full-Load Current Rating
12 Amps.
Minimum Circuit Size
15 Amps.
Connection Type
Pig Tail; hardwire or add plug
Coolant pump
1/16HP, 220V, Single Phase
F L U I D C A P A C I T I E S
Headstock Capacity | Type
4 Gal. | ISO 32 (eg. Texaco Regal R&O 32 or Mobil DTE Oil Light)
Gearbox Capacity | Type
1.4 Qt. | ISO 68 (eg. Texaco Regal R&O 68 or Mobil DTE Heavy)
Apron Capacity | Type
1.2 Qt. | ISO 68 (eg. Texaco Regal R&O 68 or Mobil DTE Heavy)
M A C H I N E D I M S.
Net Weight (approx.)
1,730 LBS
Overall Dimensions
70”L x 35”W x 59”H
Shipping Type
Wood Slat Crate
OPTIONAL EQUIPMENT
Quantity
Accessory Description
Part Number
Price
1
10” Drive Plate
# DPD410
$200
1
Micro Carriage Stop
#MCS1440
$250
1
5-C Hand lever type collet closer ”JFK” USA (free install)
#5C
$1,650.00
1 set
1/16” - 1-1/16" by 32nds 33 pc. 5C Collet Set
#900-0014
$395.00
1 set
BXA 6 pc. ALORIS type Quick Change Tool Post (piston type)
#900-0051-200
$425.00
1
MT3 Medium Duty Live Center
#900-0050-03
$75.00
1
1/32”- 1/2” Drill Chuck with Key
#700-0102
$35.00
1
JT33 Drill Chuck Arbor Tang End
#700-0153
$35.00
1 set
Lathe Package #1
5pc Indexable Carbide Turning Tool Set - #2003-0003
1/32”- 1/2” Drill Chuck with Key #700-0102
JT33 Drill Chuck Arbor Tang End #700-0153
29 pc. TIN Coated HSS Drill Set 1/16”-1/2” by 64 THS #5000-0001T
#GMCLP1
$295.00
