NEW GMC GML-26160

Equipped With

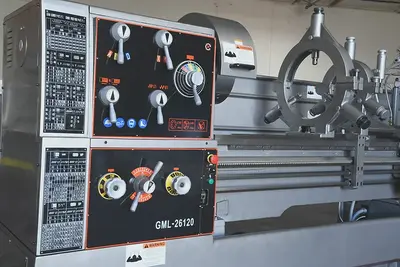

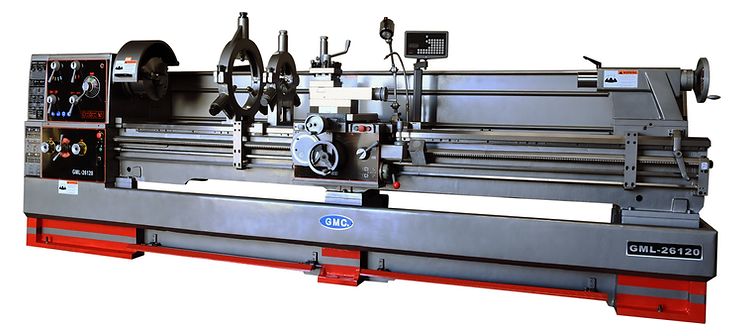

NEW 26" X 120" GMC MODEL GML-26160 HEAVY DUTY PRECISION GAP BED LATHE
ISO 9001 certified
Large spindle bore 4-1/8”
Heavy Duty spindle D1-8
Heavy Duty guideway width 16”
Heavy Duty main motor 15HP
16 spindle speeds from 25-1,600 rpm, 16 speeds
54 kinds of inch threads, and 54 kinds of metric threads
Threading and feeding rate change without changing gears
Spindle is balanced, hardened and precision ground
Spindle is supported at 3-point by high precision bearings
All gears and shafts are hardened and precision ground
Guideways induction hardened and precision ground
Automatic lubrication system in headstock and feed box
One year industrial  warranty for parts
STANDARD EQUIPMENT
Taper turning attachment

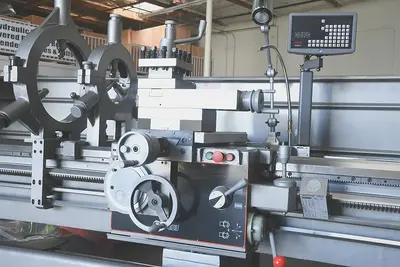

SINO DRO + Glass Scales
Chuck guard with safety shut off
Carriage Stop

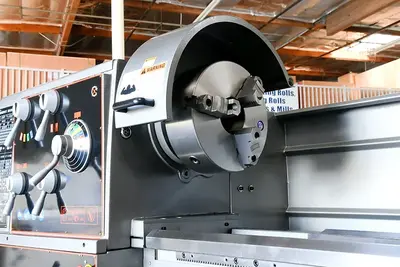

12” 3-jaw chuck with top reversible jaws, direct mount
16” 4-jaw chuck, direct mount
18” Face plate
7-1/2” large steady rest with roller jaws
3” follow rest
Removeable gap

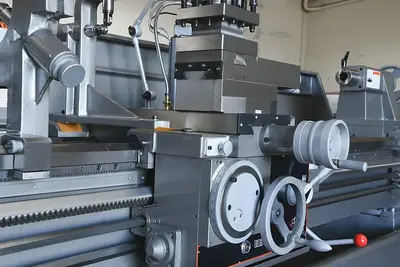

4-way tools post
Foot brake
Halogen Work light and coolant system
Full length splash guard
Dead centers
Thread chasing dial
Tool box and leveling pads
OPTIONAL EQUIPMENT
ALORIS type QC tool post set # 900-0051-500, 6 pcs .................. $1,850.00
15” large steady rest with roller jaws ................................... $1,850.00
Live Center # 900-0050-05 ............................................................ $195.00
Extra 7-1/2” large steady rest with roller jaws ........................ $995.00
Max. swing over bed
26"
Max. length of workpiece
160"
Max. swing over cross slide
17 1/4"
Max. Swing in gap
35 3/8"
Width of Bed
16"
Effective length in gap to spindle
9"
Effective length in gap to chuck jaws
4 1/2"
Spindle bore
4 1/8" D1-8
Taper of spindle center
M.T. #5
Spindle speeds
25-1,600 rpm / 16 steps
Longitudinal feeds
0.0016-0.055 IPR, 25 kinds
Cross feeds
0.0008-0.027 IPR, 25 kinds
Inch threads
80-7/16 TPI, 54 kinds
Metric threads
0.45-120 mm , 54 kinds
Diametral Pitch threads
7/8-160 DP , 42 kinds
Module threads
0.25-60mm, 46 kinds
Max. travel of top slide
9"
Max. travel of cross slide
14 1/2"
Spindle length w/o chuck
Leadscrew length X TPI
20 1/2"
1 1/2" x 2 TPI
Diameter of tailstock quill
3 1/2"
Max. travel of tailstock quill
9 1/4"
Taper of tailstock quill center
MT5
Main motor
Rapid traverse motor
15HP, 220V/40A or 440V/20A, 3 phase
1HP, 220V or 440V, 3 phase
Coolant pump
1/8 HP, 220V, or 440V, 3 phase
Net weight
10,850 lbs.
Overall dimensions, LxWxH
227" x 46" x 72"

Please note that this lathe is incompatible with the use of a rotary phase converter. Any attempt to purchase, install, or employ one, whether carried out by you or a professional service company, will automatically void the warranty. It is crucial to understand that any such actions are entirely the responsibility of the buyer. This disclaimer is intended to clearly convey that the utilization of a rotary phase converter to power or operate this metal lathe is not supported.
