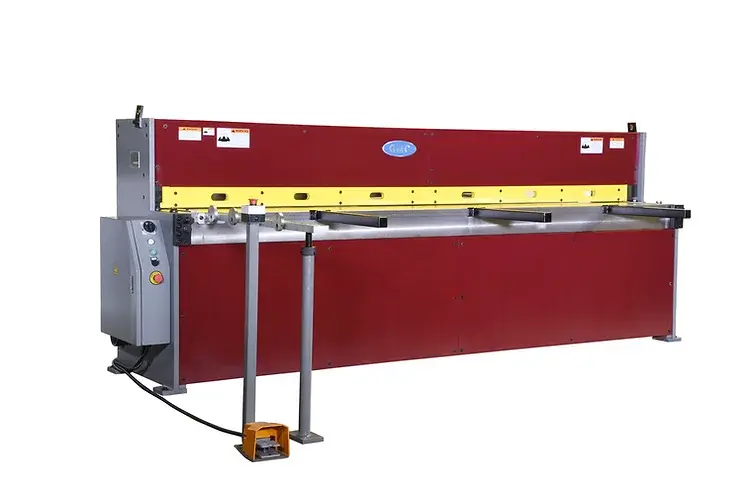

NEW GMC HS-0610MD

Equipped With
NEW 6' X 10 GAUGE GMC MODEL HS-0610MD HYDRAULIC SHEAR
Taiwan machines
ISO 9001 certified
HD all steel construction for maximum rigidity
German logic quiet Rexroth hydraulic system
Adjustable stroke from 16-20 strokes per minute
60” long squaring arm with inch / mm scale
Spring hold-downs
High grade carbon/chrome alloy steel blades and hardened to 62 HRC, 2-edge indexable upper blade and 2-edge indexable bottom blade
Full length with full view finger guard
Front supports and (2) side gauges
Safety type foot pedal control
Jog, single continuous auto operation modes
One year warranty for parts
STANDARD EQUIPMENT
26”  manual back gauge with inch/metric dual scale & one side operated hand wheel
60” long squaring arm with inch / mm scale
2 each 24” front support arms
2 each 14” Side gauges with inlaid inch/metric dual scale
Spring independent hold-downs
Full length finger guard
Removable safety foot pedal control
One set of blades
OPTIONAL EQUIPMENT
Safety fence for enclosure of the back side of the machine…………… $1,150.00
Special blade set for stainless steel …………………………………… $1,150.00
Rotary phase converter # PL-20, 20HP ……………………….. $3,150.00
Special blade set for stainless steel for HS-0810MD/1010MD…... $1,750.00
Cutting Capacity:
Mild Steel
Stainless Steel
Minimum Capacity

6' x 10Ga.
6' x 14Ga.
24 Ga.
Blade Length
78"
Strokes per minute adjustable
16-20
Throat depth
16"
Worktable height
30 1/2"
Front support arm
24"
Back gauge
26"
Blade Rake Angle
1.5 Degree
Oil Tank Capacity
21 Gal
Main Motor
5 1/2 HP
Prewired: 220/3-Phase
Optional: 440V 3-Phase
Machine Weight
4,150 lbs.
Machine Dimensions
98" x 35" x 52"
