Equipped With

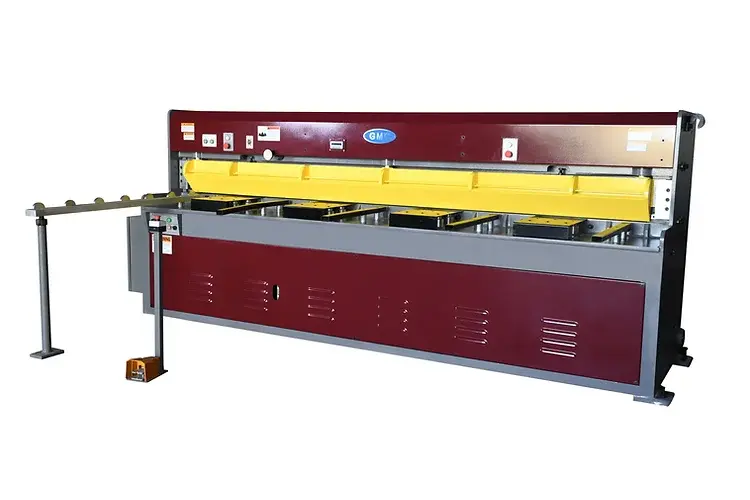

NEW 10' X 14 GAUGE GMC MODEL HS-1010E HYDRAULIC SHEAR
Standard Features:
· ISO 9001 certified
· Taiwan machines

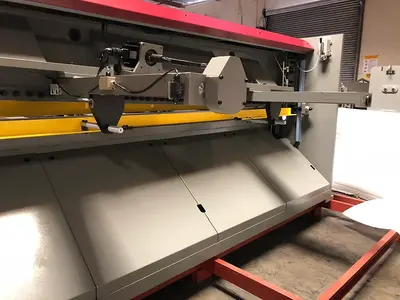

· HS-1010E comes with 36” German SIKO Front Operated power back gauge w/ micro
adjustment 0.004” , inch/mm digital display
· Quick Change Blade Gap Adjustment (BGA), with gap dial
· Shadow line for accurate straight cutting

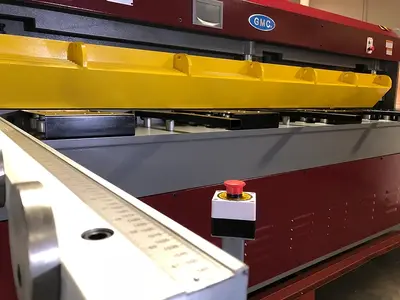

· 60” squaring arm with inlaid inch/metric dual scale
· CE standard “OMERO” electric control system
· Meet OSHA safety standard code
· Adjustable cutting length and stroke

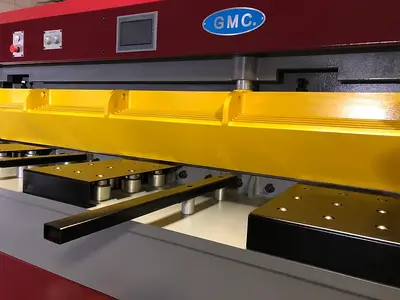

· Ball transfer plates on worktable for easy loading workpiece
· Well balanced and sturdy all steel machine frame
· German made Hydraulic logic system centrally located and quiet
· Hydraulic hold-downs with anti-mar neoprene
· Shear blades are high grade carbon/chrome alloy steel and hardened
to 60 HRC, 2-edge indexable upper blade and 2-edge indexable bottom blade
· Full length viewable safety finger guard to protect operator from cutting hazard
· Removable safety foot pedal, automatic blade raise up on removal of foot from pedal
· Hydraulic, electrical overload protection
· Compact operator control panel
· All motors are overload protected & low voltage control system
· Jog or continuous auto cycle cutting operation modes
· One year industrial warranty for parts
Standard Equipment:
· HS-1010E comes with 36” German SIKO Front Operated power back gauge w/ micro
adjustment 0.004” , inch/mm digital display
· 1 each 60” squaring arm with inlaid inch/metric dual scale
· Quick change blade gap adjustment (BGA)
· Shadow line for accurate straight cutting
· Material support and drop back chuter
· Upper and bottom blade set with 2-edge on bottom & 2-edge on upper

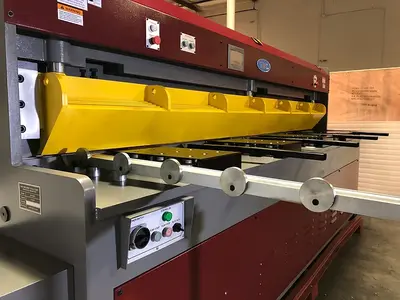

· 2 each 24” front support arms
· Hydraulic hold-downs with anti-mar neoprene
· Full length viewable finger guard
· Removable safety foot pedal
· Tool box
Optional Equipment:
· Safety fence for enclosure of the back side of the machine…… $1,150.00
·
Cutting capacity:
Mild steel
Stainless steel
10’ x 10 Ga.
10’ x 14 Ga.
Blade length
121"
Strokes per minute
10-15
Throat depth
18"
Worktable height
34 1/2"
Front support arm
24"
Back gauge
36" SIKO powered B.G.
Blade rake angle
2 degree
Oil tank cap.
26 Gal
Main Motor
Powered B.G. Motor
7.5 HP 3 Phase
Prewired: 220V/35A
Optional: 440V/18A
1 HP, 220V/440V, 3 Phase
Machine weight
9350 LBS
Machine dimensions
178" x 99" x 65"
