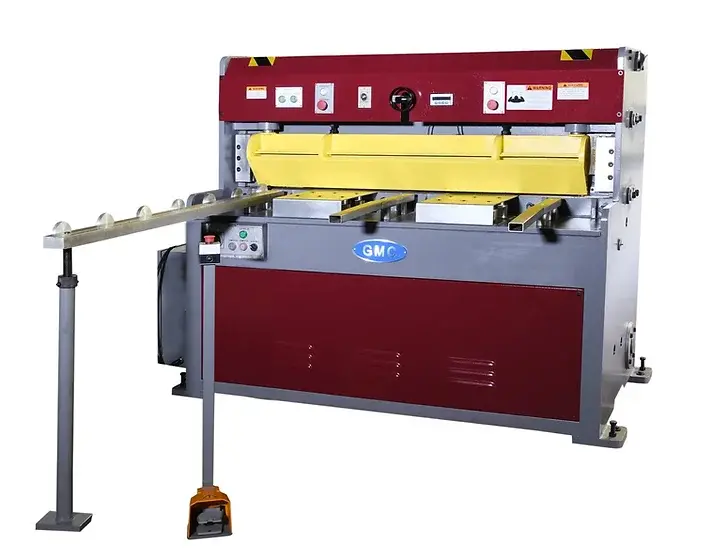

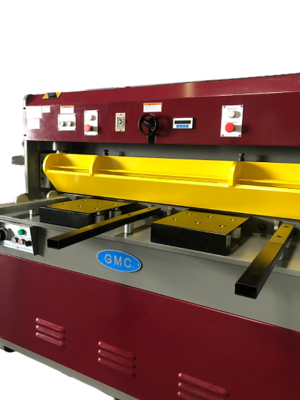

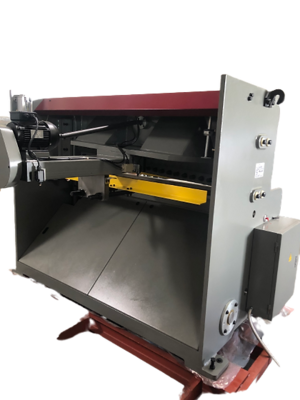

NEW GMC HS-0625E

Equipped With
NEW 6' X 1/4" GMC MODEL HS-0625E HYDRAULIC SHEAR
ISO 9001 certified
Taiwan machines
24” German SIKO Front Operated power back gauge w/ micro adjustment 0.004” inch/mm digital display
Quick Change Blade Gap Adjustment (BGA), with gap dial
CE standard “OMERO” electric control system
Meet OSHA safety standard code
Shadow line for accurate straight cutting
Adjustable cutting length and stroke
Ball transfer plates on worktable for easy loading workpiece
Dual voltage 220V/440V
Well balanced and sturdy all steel machine frame
German made Hydraulic logic system centrally located and quiet
Hydraulic hold-downs with anti-mar neoprene
Shear blades are high grade carbon/chrome alloy steel and hardened to 60 HRC, 2-edge indexable upper blade and 2-edge indexable bottom blade
Full length viewable safety finger guard to protect operator from cutting hazard
Removable safety foot pedal, automatic blade raise up on removal of foot from pedal
Hydraulic, electrical overload protection
Compact operator control panel
All motors are overload protected & low voltage control system
Jog or continuous auto cycle cutting operation modes
One year industrial warranty for parts
STANDARD EQUIPMENT
24” German SIKO Front Operated Power Back Gauge with micro adjustment , accuracy 0.004” inch/metric digital display
1 each 60” squaring arm with inlaid inch/metric dual scale
Quick change blade gap adjustment (BGA)
Shadow line for accurate straight cutting
Material support and drop back chuter
Upper and bottom blade set with 2-edge on bottom & 2-edge on upper
2 each 24” front support arms
Hydraulic hold-downs with anti-mar neoprene
Full length viewable finger guard
Removable safety foot pedal
Tool box
OPTIONAL EQUIPMENT
Safety fence for enclosure of the back side of the machine -  $1,950.00
Rotary Phase Converter with Smart Booster #PL-30 - $5,550.00
Cutting capacity:
Mild steel
Stainless steel

6’ x ¼”
6’ x 10 Ga.
Blade length
6'6"
Strokes per minute
10-17
Throat depth
18"
Worktable height
34 1/2"
Front support arm
24"
Back gauge for E model
36" powered B.G.
Blade rake angle
2 degree
Oil tank cap.
2117L = 31 Gal
Main Motor

Powered B.G. Motor
15 HP, 220V/50A
440V/25A

1 HP
Machine weight
7,650 LBS
Machine dimmensions
102" x 89" x 63"
The minimum material thickness this Shear can handle is 20 gauge.
