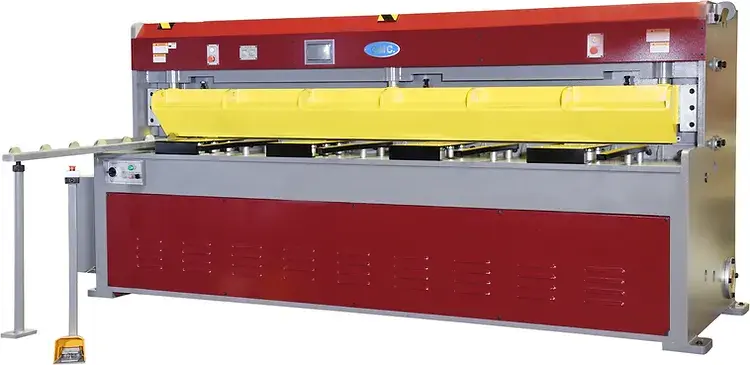

NEW GMC HS-1025E

Equipped With
NEW 10' X 1/4" GMC MODEL HS-1025E HYDRAULIC SHEAR
ISO 9001 certified
Taiwan machines
comes with go-to NC power back gauge with touch screen
Quick Change Blade Gap Adjustment (BGA), with gap dial
CE standard “OMERO” electric control system
Meet OSHA safety standard code
Shadow line for accurate straight cutting
Adjustable cutting length and stroke

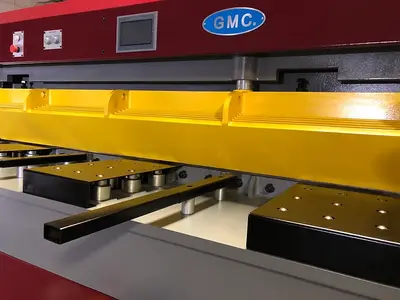

Ball transfer plates on worktable for easy loading workpiece
Well balanced and sturdy all steel machine frame
German made Hydraulic logic system centrally located and quiet
Hydraulic hold-downs with anti-mar neoprene
Shear blades are high grade carbon/chrome alloy steel and hardened to 60 HRC, 2-edge indexable upper blade and 2-edge indexable bottom blade
Full length viewable safety finger guard to protect operator from cutting hazard
Removable safety foot pedal, automatic blade raise up on removal of foot from  pedal
Hydraulic, electrical overload protection
Compact operator control panel
All motors are overload protected & low voltage control system
Jog or continuous auto cycle cutting operation modes
One year industrial warranty for parts
STANDARD EQUIPMENT

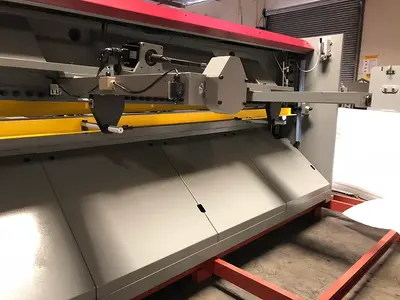

36” go to NC back gauge w/ touch screen

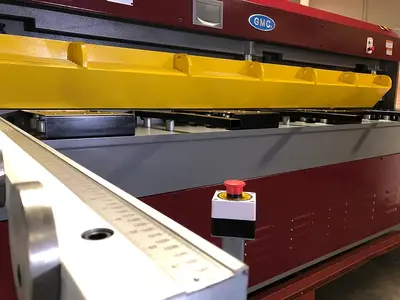

1 each 60” squaring arm with inlaid inch/metric dual scale
Quick change blade gap adjustment (BGA) with gap dial
Shadow line for accurate straight cutting
Material support and drop back chuter
Upper and bottom blade set with 2-edge on bottom & 2-edge on upper
4 each 24” front support arms
Hydraulic hold-downs with anti-mar neoprene
Full length viewable finger guard
Removable safety foot pedal
Tool box
OPTIONAL EQUIPMENT
440V 3-Phase is optional
Safety fence for enclosure of the back side of the machine -  $1,950.00
Cutting capacity:
Mild steel
Stainless steel

10’ x ¼”
10’ x 10 Ga.
Blade length
10'2" = 122"
Strokes per minute
10-12
Throat depth
18"
Worktable height
34 1/2"
Front support arm
24"
NC Back Gauge
36" go to NC powered back gauge with touch screen
Blade rake angle
2 degree
Oil tank cap.
53 Gal.
Main Motor

NC Back Gauge
20 HP, 220V/70A, 3 Phase
440V/35A, 3 Phase (OPTIONAL)

1 HP, 220V, 3 Phase
Machine weight
13,850 LBS
Machine dimmensions
181" x 117" x 65" (with back gauge and squaring arm)
