Equipped With

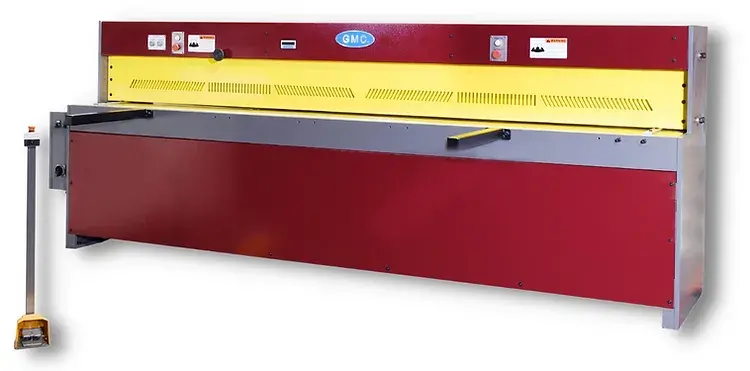

NEW 10' X 14 GAUGE GMC MODEL EPS-1014E MECHANICAL SHEAR
ISO 9001 certified
American design and Taiwan quality machine
HD all steel construction for maximum rigidity
Precision driven gearbox
Full length 26 strokes per minute
60” long squaring arm with inch / mm scale
Spring hold-downs
High grade carbon/chrome alloy steel blades and hardened to 62 hrc,
2-edge indexable upper blade and 4-edge indexable bottom blade
Full length with full view finger guard
Front supports and (2) side gauges
Safety type foot pedal control
Jog, single continuous auto operation modes
One year warranty for parts
STANDARD EQUIPMENT
36” front operated power back gauge with German SIKO digital readout & fine adjustment wheel
60” long squaring arm with inch / mm scale, mounted on right side of the table
Rear lifting support for thin sheet metal
2 each 24” front support arms
full length finger guard
Removable safety foot pedal control
One set of upper & lower blades
OPTIONAL EQUIPMENT
Safety fence for enclosure of the back side of the machine - $1,150
Material front out tray - $1,950.00
Cutting Capacity
Mild Steel
Stainless Steel
10' x 14Ga.
10' x 18Ga.
Blade Lenght
10'1"
Strokes per minute
26
Worktable height
30-1/2"
Front support arm
24"
Back gauge
Material front out tray (optional)
36" Power Back gauge
10' x 4'6"
Blade Rake Angle
2.0 Degree
Main Motor
Motor for power back gauge
7 1/2HP, 220V/25A - 440V/15A, 3 Phase
3/4 HP, 220V/440V, 3 Phase
Machine weight
7350 LBS
Machine dimensions
147" x 57" x 53"
