NEW GMC EPS-0410M

Equipped With

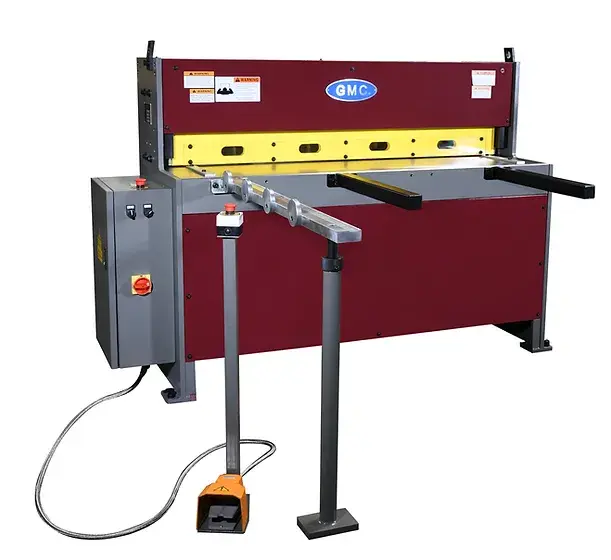

NEW 4' X 14 GAUGE  GMC MODEL EPS-0410M HYDRAULIC SHEAR
ISO 9001 certified
American design and Taiwan quality machine
With material front out tray
HD all steel construction for maximum rigidity
Precision driven gearbox
Full length 30 strokes per minute
60” long squaring arm with inch / mm scale
Spring hold-downs
High grade carbon/chrome alloy steel blades and hardened to 62 hrc,
2-edge indexable upper blade and 4-edge indexable bottom blade
Full length with full view finger guard
Front supports and (2) side gauges
Safety type foot pedal control
Jog, single continuous auto operation modes
One year warranty for parts
STANDARD EQUIPMENT
26” manual back gauge with one side operated handwheel.
60” long squaring arm with inch / mm scale, mounted on right side of the table
2 each 24” front support arms
Full length finger guard
Removable safety foot pedal control
One set of upper & lower blades
OPTIONAL EQUIPMENT
Safety fence for enclosure of the back side of the machine - $1,150
Cutting Capacity
Mild Steel - HRS  (tensile 60,000 PSI)
Stainless Steel (tensile 85,000 PSI)
Soft Aluminum (tensile 28,000 PSI)

4' x 10Ga.
4' x 14Ga.
4' x 1/4"
Blade Lenght
52"
Strokes per minute
30
Worktable height
32"
Front support arm
36"
Back gauge
26" Manual Back gauge
Blade Rake Angle
2.2 Degree
Main Motor
5-1/2HP, 3 Phase 20A
Prewired: 220VAC
(10A/440VAC optional)
Machine weight
Shipping weight
3,110 lbs.
3,150 lbs.
Machine dimensions
Shipping dimensions
73" x 43" x 68"
80" x 40" x 62"
