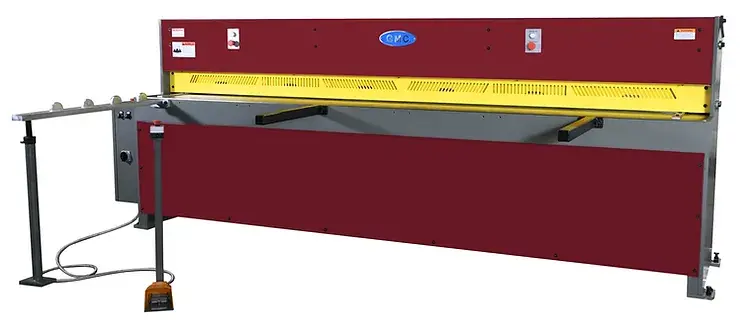

NEW GMC EPS-0412M

Equipped With
NEW 10' X 14 GAUGE  GMC MODEL EPS-1014M HYDRAULIC SHEAR
ISO 9001 certified
American design and Taiwan quality machine
HD all steel construction for maximum rigidity
Precision driven gearbox
Full length 26 strokes per minute
60” long squaring arm with inch / mm scale
Spring hold-downs
High grade carbon/chrome alloy steel blades and hardened to 62 hrc,
2-edge indexable upper blade and 4-edge indexable bottom blade
Full length with full view finger guard
Front supports and (2) side gauges
Safety type foot pedal control
Jog, single continuous auto operation modes
One year warranty for parts
STANDARD EQUIPMENT
26” manual back gauge with one side operated handwheel.
60” long squaring arm with inch / mm scale, mounted on right side of the table
2 each 24” front support arms
full length finger guard
Removable safety foot pedal control
One set of upper & lower blades
OPTIONAL EQUIPMENT
Safety fence for enclosure of the back side of the machine - $1,150
Cutting Capacity
Mild Steel
Stainless Steel
10' x 14Ga.
10' x 18Ga.
Blade Lenght
10'1"
Strokes per minute
26
Worktable height
30-1/2"
Front support arm
24"
Back gauge
26" Manual Back gauge
Blade Rake Angle
2.0 Degree
Main Motor
7 1/2 HP, 220V/25A - 440V/15A, 3 Phase
Machine weight
7,280 LBS
Machine dimensions
147" x 57" x 53"
