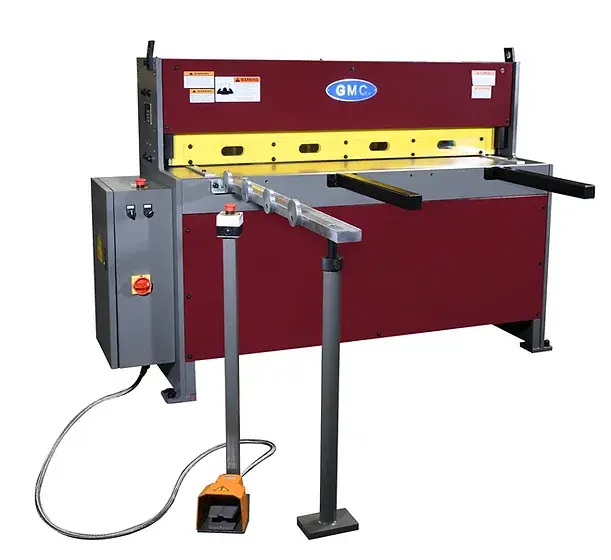

NEW GMC EPS-0412M

Equipped With
NEW 4' X 12 GAUGE  GMC MODEL EPS-0412M HYDRAULIC SHEAR
ISO 9001 certified
1-Year parts only warranty
American design and Taiwan quality machine
With material front out tray
HD all steel construction for maximum rigidity
Precision driven gearbox
Full length 30 strokes per minute
60” long squaring arm with inch / mm scale
Spring hold-downs
High grade carbon/chrome alloy steel blades and hardened to 62 HRC
2-edge indexable top blade
4-edge indexable bottom blade
Full length with full view finger guard
Front supports and (2) side gauges
Safety type foot pedal control
Jog, single continuous auto operation modes
STANDARD EQUIPMENT
26” manual back gauge with one side operated handwheel
60” long squaring arm with inch / mm scale, mounted on right side of the table
2 - 24” front support arms
Full length finger guard
Removable safety foot pedal control
One set of top & lower blades
OPTIONAL EQUIPMENT
Safety fence for enclosure of the back side of the machine - $1,150
Cutting Capacity
Mild Steel - HRS  (tensile 60,000 PSI)
Stainless Steel (tensile 85,000 PSI)
Soft Aluminum (tensile 28,000 PSI)

4' x 12 Ga.
4' x 16 Ga.
4' x 8 Ga.
Blade Length
52"
Strokes per minute
35
Worktable height
32"
Front support arm
36"
Go-to Back gauge
26" manual back gauge
Blade Rake Angle
2 Degree
Main Motor
4HP, 3 Phase 15 AMP
Prewired: 220VAC
(7A/440VAC optional)
Machine weight
Shipping weight
2,110 LBS
2,123 LBS
Machine dimensions
Shipping dimensions
72" x 42" x 67"
80" x 35" x 61"
