NEW GMC HBB-1010NC

Equipped With

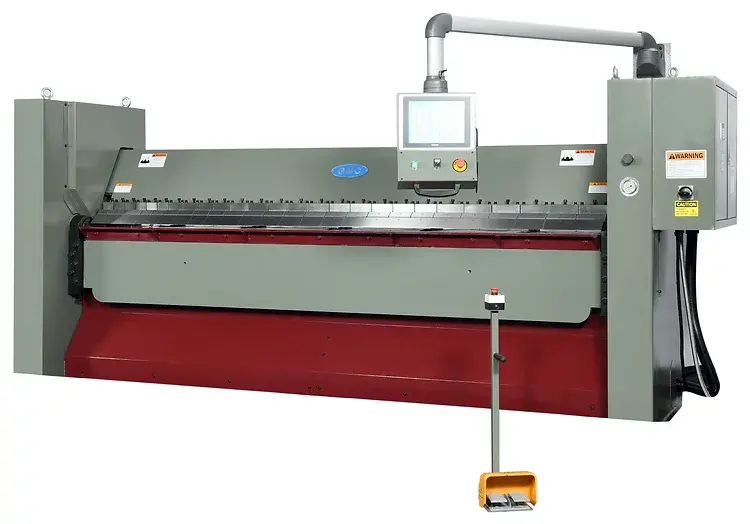

NEW 10' X 10 GAUGE GMC MODEL HBB-1010NC HYDRAULIC BOX AND PAN BRAKE WITH NC CONTROLLER
ISO 9001 certified
Meet OSHA and CE safety standard
48” NC table back gauge with fingers

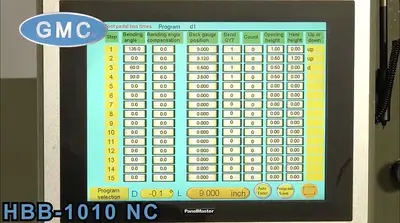

Max. 16 bends per program
Upto 100 Program Storage
Programmable Angle/ Angle Correct
NC ram height control for open hemming
Hardened fingers and table
Germany Rexroth  hydraulic system
Yaskawa Servo motors and Drives

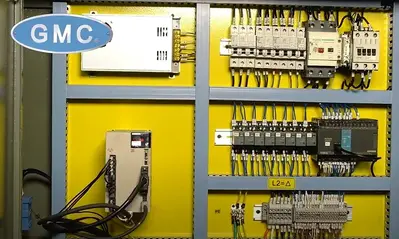

Schneider electrical components
All steel construction for maximum rigidity
Hydraulic logic system centrally located and quiet
Safety type foot pedal with handle and E-stop switch
Safety 24V low voltage & overload protection
One year industrial warranty for parts
OPTIONAL EQUIPMENT
One piece 10’ straight finger - $2,995.00
One day on-site training - $4,995.00
Capacity:
Mild Steel
Stainless Steel
Hemming max thickness:

10 Ga.
14 Ga.
22 Ga.
Bending length capacity
10'
Bend Angel Degree, programmable
135 degree
Max. Box Depth
6"
Large Beam Opening/Clamping Opening
3"
Beam front/back adjustment
1"
Min. Reverse Bend
1"
Max. Table Back Gauge Distance
Min. Table Back Gauge Distance
48-3/8"
1/4"
Back Gauge Repeatability
0.0039"
Back Gauge Table Height
35-3/4"
Assorted fingers
3"
4"
5"
6"
Main Motor
Servo Motor for back gauge
10 HP 3 Phase
Prewired: 220VAC 35A
1 HP
Hydraulic Oil Tank Capacity:
Recommended hydraulic oil:
32 Gal.
Shell #68 or equivalent
Machine Weight:
Shipping weight:
Machine Dimensions:
Shipping Dimensions:
11,550 lbs.
11,850 lbs.
175" x 93" x 76"
163" x  85" x 78"
