NEW GMC HBB-0610

Equipped With

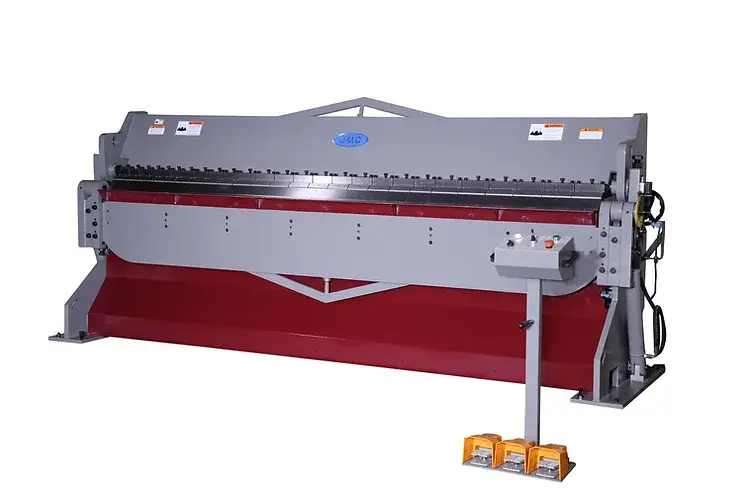

NEW 72" X 10 GAUGE GMC MODEL HBB-0610 HYDRAULIC BOX AND PAN BRAKE
Taiwan Machines
ISO 9001 certified
Hydraulic adjustment for opening
Hydraulic power clamping for workpiece

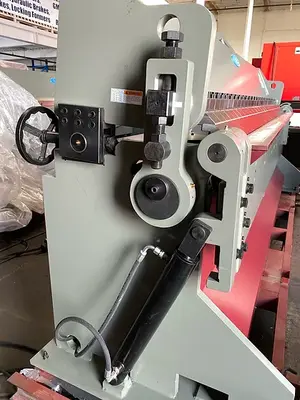

26” manual back gauge with handwheel
1” manual beam adjustment ( front and back )
Min. reverse bend is ¾” (20mm)
Heavy welded all steel construction for maximum rigidity
Germany Rexroth Hydraulic logic system centrally located and quiet
A wide guidebody ensures strong, stable, smooth & accurate movement
Total pieces fingers assortment:
3”/6pcs, 4”/3pcs, 5”/6pcs, 6”/2pcs

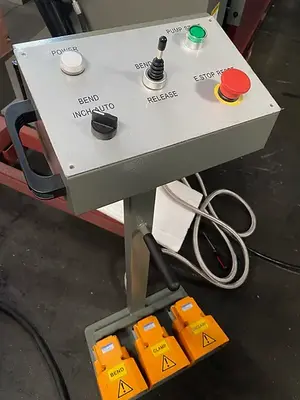

Central control panels on each side for convenient operation
Jog and auto operation modes
Overload protection and disconnect switch
One year warranty for parts
STANDARD EQUIPMENT

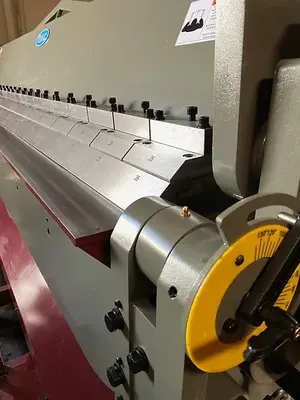

Assorted fingers
26” manual back gauge with one side handwheel operation

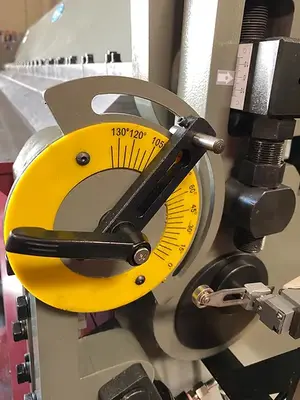

Angle set up dial
Hydraulic clamping system
Foot pedal control for hydraulic clamping & auto mode
OPTIONAL EQUIPMENT
One-piece straight finger instead of assorted fingers , extra - $2,995.00
Safety fence for enclosure of the front side of the machine - $1,150.00
Safety light curtain - $5,950.00
3" replacement finger - $295.00
4" replacement finger - $295.00
5" replacement finger - $295.00
6" replacement finger - $395.00
Max Bending Length:
6’
Bending Capacity:
Mild Steel
Stainless Steel

10 Ga.
12 Ga.
Hemming max thickness:
24 Ga.
Bend Degree:
135
Max. Box Depth:
6"
Large Beam Opening:
3"
Manual Back Gauge:
26”
Oil Tank Gal.
12 Gal.
Hydraulic Oil:
Shell #68 or equivalent
Main Motor
5 HP 3 Phase
Prewired: 220VAC 10A
Optional: 440VAC 5A
Weight
5,000 lbs.
Shipping Weight:
5,050 lbs.
Overall Dimensions
91" x 46" x 67"
Shipping Dimensions:
105” x 40” x 66”
