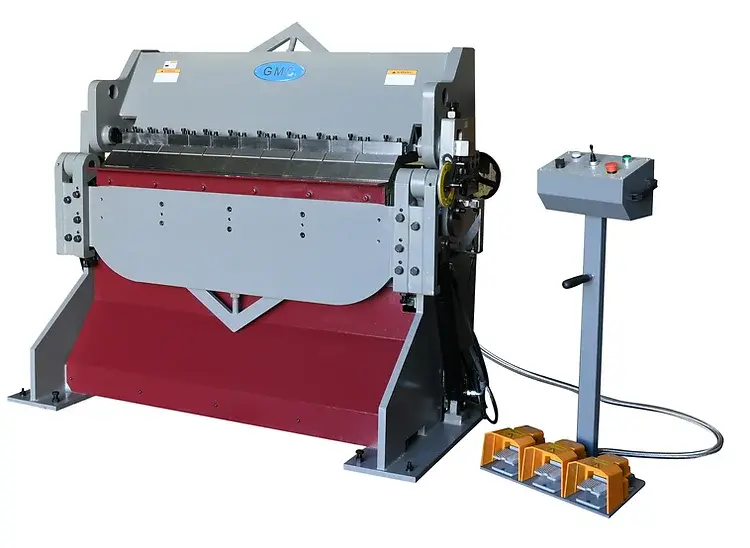

NEW GMC HBB-0410

Equipped With
NEW 48" X 10 GAUGE GMC MODEL HBB-0410 HYDRAULIC BOX AND PAN BRAKE
Taiwan Machines
ISO 9001 certified
Hydraulic adjustment for opening
Hydraulic power clamping for workpiece
26” manual back gauge with handwheel
1” manual beam adjustment ( front and back )
Min. reverse bend is ¾” (20mm)
Heavy welded all steel construction for maximum rigidity
Germany Rexroth Hydraulic logic system centrally located and quiet
A wide guidebody ensures strong, stable, smooth & accurate movement
Total pieces fingers assortment:
3”/ 3pcs, 4”/2pcs, 5”/5pcs and 6”/1pc
Central control panels on each side for convenient operation
Jog and auto operation modes
Overload protection and disconnect switch
One year warranty for parts
STANDARD EQUIPMENT
Assorted fingers
26” manual back gauge with one side handwheel operation
Angle set up dial
Hydraulic clamping system
Foot pedal control for hydraulic clamping & auto mode
OPTIONAL EQUIPMENT
One-piece straight finger instead of assorted fingers , extra - $2,995.00
Safety fence for enclosure of the front side of the machine - $1,150.00
Safety light curtain - $5,950.00
3" replacement finger - $295.00
4" replacement finger - $295.00
5" replacement finger - $295.00
6" replacement finger - $395.00
Max Bending Length:
4’
Bending Capacity:
Mild Steel - HRS (tensile 60K PSI)
Stainless Steel (tensile 85K PSI)
Soft Aluminum (tensile 28K PSI)

10 Ga.
12 Ga.
1/4"
Hemming max thickness:
24 Ga.
Bend Degree:
135 Degrees
Max. Box & Pan Depth:
6"
Large Beam Opening:
3"
Manual go-to back gauge:
26”
Oil tank capacity
10 gal.
Hydraulic oil
Shell #68 or equivalent
Main Motor
5 HP, 3 Phase 10A
Prewired: 220VAC
Optional: 440VAC 5A
Machine weight
4,050 lbs.
Shipping weight
4,100 lbs.
Machine dimensions
67" x 46" x 67"
Shipping dimensions
80” x 40” x 65”
