NEW GMC HBB-1014

Equipped With

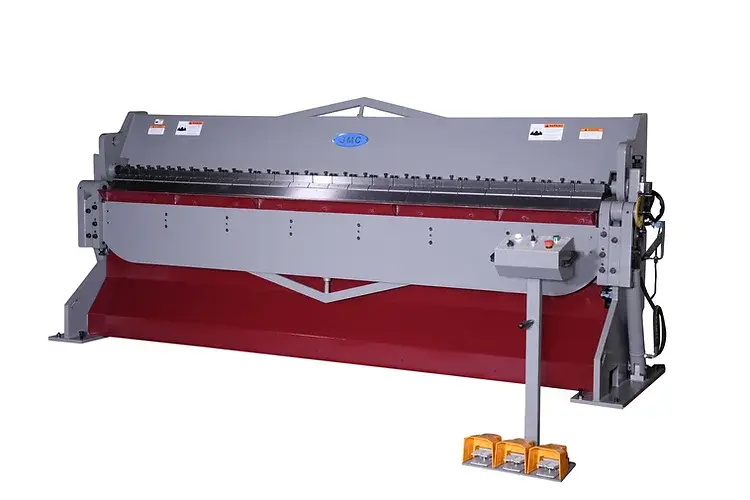

NEW 10' X 14 GAUGE GMC MODEL HBB-1014 HYDRAULIC BOX AND PAN BRAKE
Taiwan Machines
ISO 9001 certified
Hydraulic adjustment for opening
Hydraulic power clamping for workpiece

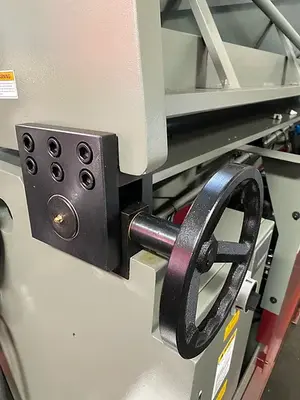

26” manual back gauge with handwheel
1” manual beam adjustment ( front and back )
Min. reverse bend is ¾” (20mm)
Heavy welded all steel construction for maximum rigidity
German Rexroth Hydraulic logic system centrally located and quiet
A wide guidebody ensures strong, stable, smooth & accurate movement
Total pieces fingers assortment:
3”/6pcs, 4”/4pcs, 5”/10pcs, 6”/6pcs

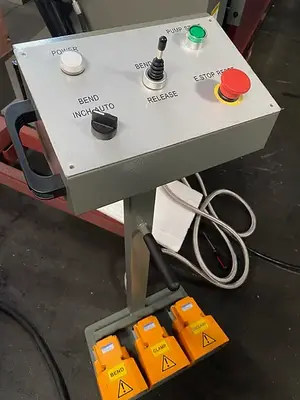

Central control panels on each side for convenient operation
Jog and auto operation modes
Overload protection and disconnect switch
One year warranty for parts
STANDARD EQUIPMENT

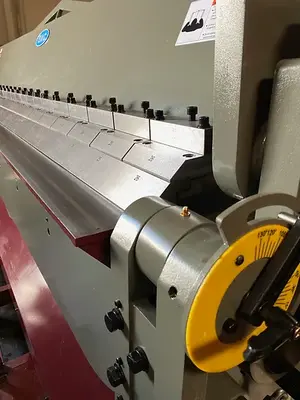

Assorted fingers
26” manual back gauge with one side handwheel operation

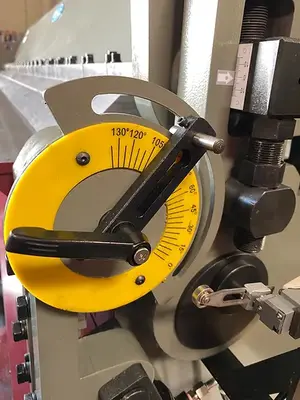

Angle set up dial
Hydraulic clamping system
Foot pedal control for hydraulic clamping & auto mode
OPTIONAL EQUIPMENT
One-piece straight finger instead of assorted fingers , extra - $2,995.00
Safety fence for enclosure of the front side of the machine - $1,150.00
Safety light curtain - $5,950.00
3" replacement finger - $295.00
4" replacement finger - $295.00
5" or 6" replacement finger - $395.00
Max Bending Length:
10'
Bending Capacity:
Mild Steel
Stainless Steel

14 Ga.
16 Ga.
Hemming max thickness:
28 Ga.
Bend Degree:
135
Max. Box Depth:
6"
Large Beam Opening:
3"
Manual Back Gauge:
26”
Oil Tank Gal.
17 Gal
Hydraulic Oil:
Shell #68 or equivalent
Main Motor
5 HP 3 Phase
Prewired: 220VAC 20A
Optional: 440VAC 10A
Weight
6,850 lbs.
Shipping Weight:
6,950 lbs.
Overall Dimensions
142" x 46" x 66"
Shipping Dimensions:
153” x 41” x 67”
