NEW GMC HBB-1010

Equipped With

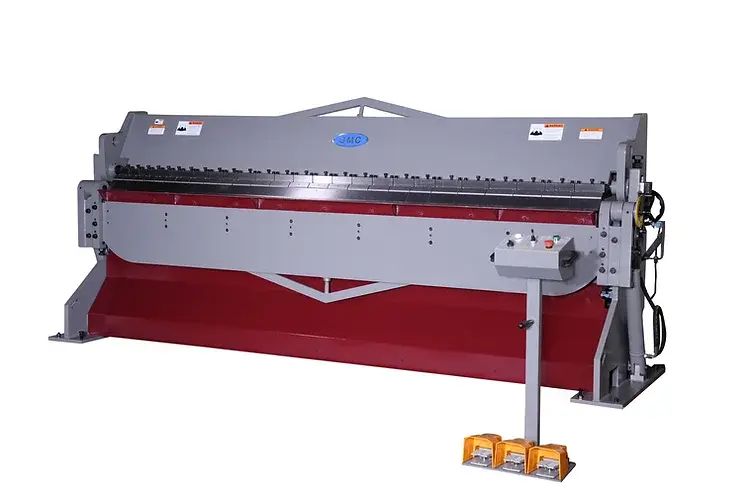

NEW 10' X 10 GAUGE GMC MODEL HBB-1010 HYDRAULIC BOX AND PAN BRAKE
Taiwan Machines
ISO 9001 certified
Hydraulic adjustment for opening
Hydraulic power clamping for workpiece

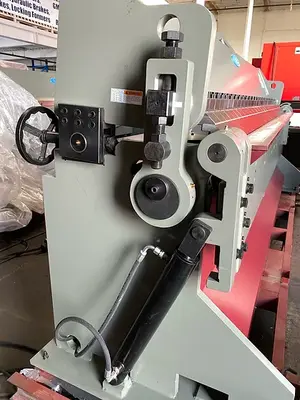

26” manual back gauge with handwheel
1” manual beam adjustment ( front and back )
Min. reverse bend is ¾” (20mm)
Heavy welded all steel construction for maximum rigidity
Germany Rexroth Hydraulic logic system centrally located and quiet
A wide guidebody ensures strong, stable, smooth & accurate movement
Total pieces fingers assortment:
HBB-0410 & 0412: 3”/ 3pcs, 4”/2pcs, 5”/5pcs and 6”/1pc
HBB-0610 & 0612: 3”/6pcs, 4”/3pcs, 5”/6pcs, 6”/2pcs
HBB-0810 & 0812: 3”/6pcs, 4”/4pcs, 5”/10pcs, 6”/2pcs
HBB-1010 & 1014: 3”/6pcs, 4”/4pcs, 5”/10pcs, 6”/6pcs
HBB-10316: 4”/3pcs, 5”/5pcs, 6”/5pcs, 7”/3pcs, 8”/ 4pcs
HBB-1214: 3”/6pcs, 4”/4pcs, 5”/10pcs, 6”/10pcs

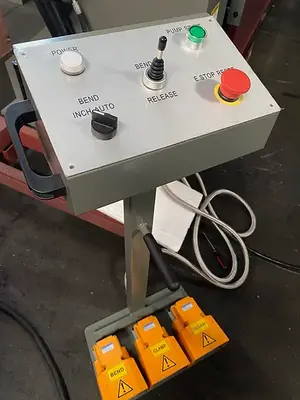

Central control panels on each side for convenient operation
Jog and auto operation modes
Overload protection and disconnect switch
One year warranty for parts
STANDARD EQUIPMENT

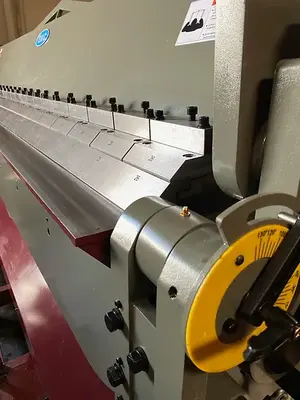

Assorted fingers
26” manual back gauge with one side handwheel operation

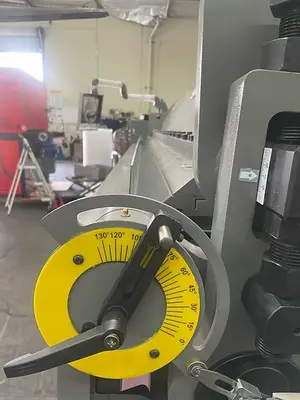

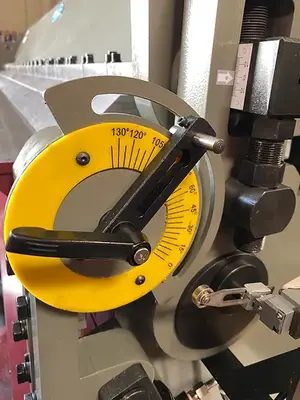

Angle set up dial
Hydraulic clamping system
Foot pedal control for hydraulic clamping & auto mode
OPTIONAL EQUIPMENT
One-piece straight finger instead of assorted fingers , extra - $2,995.00
Safety fence for enclosure of the front side of the machine - $1,150.00
Safety light curtain - $5,950.00
Bending capacity:
mild steel(hot roll), 60,000PSI
stainless steel, tensile 85,000PSI
soft aluminum, tensile 28,000PSI
Hemming max thickness

10’x10Ga
10’x12Ga
10’ x ¼”
24Ga
Finger length
10’1”
Bending degree
135°
Max. box & pan depth
6”
Large beam opening
3”
Manual back gauge
26”
Oil tank capacity
32 Gal
Hydraulic oil , Shell # 68 or equivalent
Main motor

Amperage draw
10HP, 220V/ 440V , 3 ph

220V/35A , 440V/20A
Machine weight
Shipping weight
8,050LBS
8,150LBS
Machine dimensions LWH
Shipping dimensions LWH
142x46x66”
153x41x67”
