NEW GMC HBR-0425

Equipped With

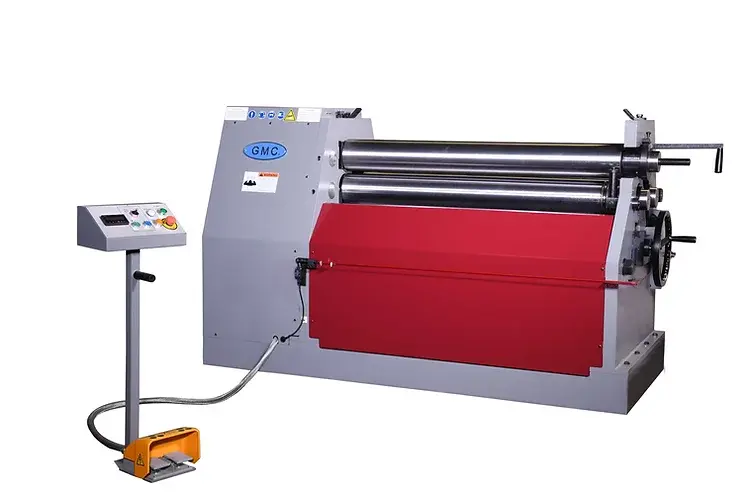

NEW 4' X 1/4" GMC MODEL HBR-0425 PLATE ROLLING MACHINE
ISO 9001 certified
Taiwan Machines
All three rollers are driven

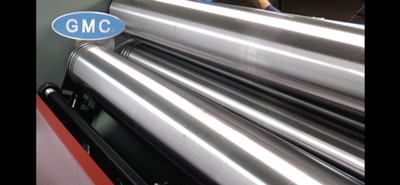

All three rollers are hardened, up to 50-52 HRC
Easy swing –out top roller
Standard cone attachment installed
1 each LED indicator for bending roll position
Safety line all around the machine for emergency stop
Heavy Duty all steel welded machine construction
German Hydraulic logic system centrally located and quiet
Bending roll is hydraulic powered up/down & tilting adjustment
Planetary reduction gear and pump
All three rolls are made of high grade alloy steel
All rolls run forward and reverse  Safety type foot pedal control
Overload protection and disconnect switch
Power source 208V/220V, (Option 460 V , 3 phase)
One year industrial warranty for parts
STANDARD EQUIPMENT
LED indicator for bending roll position
Safety line all around the machine for emergency stop
Removable safety foot pedal and tool box

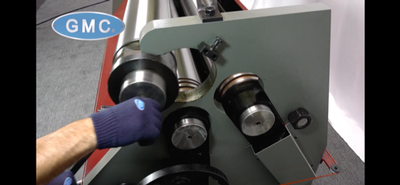

Cone attachment (to make cone parts)
(3) grooves 3/8”, ½”, 5/8” on roll for bending wire
OPTIONAL EQUIPMENT
Safety fence for enclosure of the back side of the machine -  $1,150.00
Roll Capacity:
Mild Steel
4' x 1/4"
Stainless Steel
4' x 3/16"
Min. Roll dia.
8"
Rolls Length
4' 3"
Rolls Dia.
6"
Pre-bend
0.18"
Rolls speed
5 RPM
Rolls Opening
2 1/2"
Oil Tank Cap.
45L = 12 Gal.
Main Motor
3 HP
Weigth
4,650 lbs.
Dimensions
87" x 36" x 53"
