Equipped With

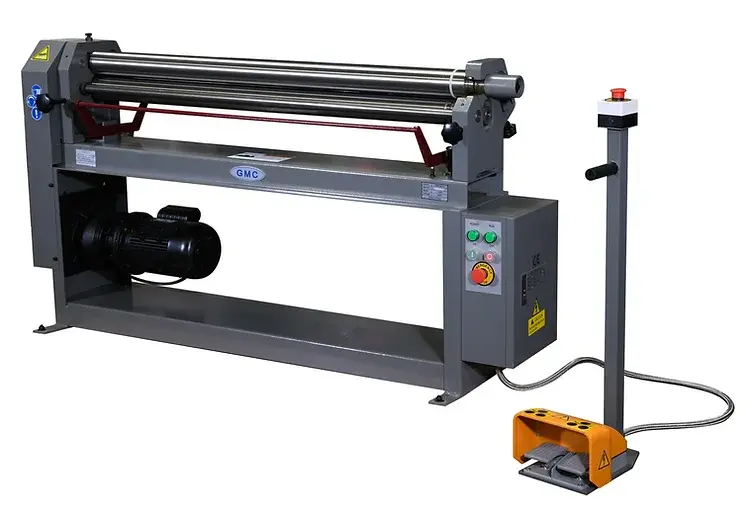

NEW 50" X 16GA GMC MODEL PSR-5016-3PH SLIP ROLL
ISO 9001 certified
Heavy welded all steel construction for maximum rigidity
Silence electrical motor
Quick release top roller
Two rolls are driven
Precision ground rollers
1” roll opening
All three rolls are made of high grade alloy steel, hardened up to 50 HRC
All rolls run forward and reverse
Safety type removable foot pedal
Overload protection and disconnect switch
One year warranty for parts
STANDARD EQUIPMENT
Electrical cabinet
Removable safety foot pedal
Rolling capacity:
Mild steel
Stainless steel
Min. thickness capacity
50"x16Ga.
50"x20Ga.
50"x26Ga.
Rolls size, length x dia
Min. roll bending dia.
capacity
50”x 3”
3 1/2"
Rolls speed
201” / min.
Rolls opening
¼”
(3) grooves sizes
5/16”, 3/8” , ½”
Main motor
1.5 HP, 220V, 3PH
Net weight
828 LBS
Machine dimensions,
LxWxH
68x28x47”
