NEW GMC PBR-0810E

Equipped With

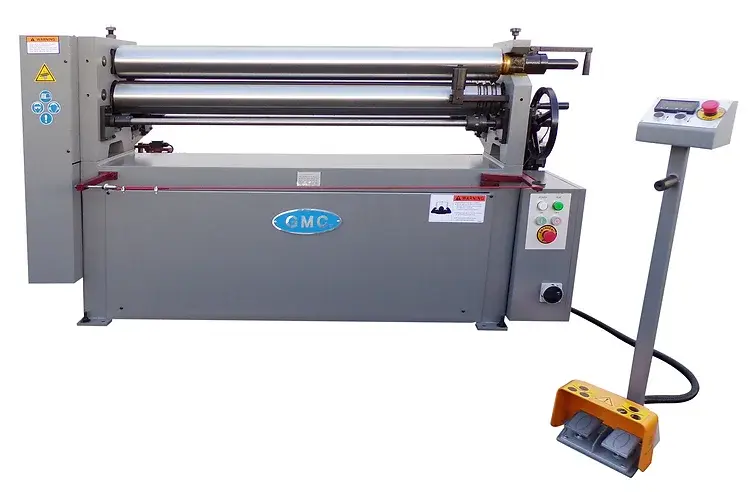

NEW 8' X 10GA GMC MODEL PBR-0810E PLATE BENDING ROLL
SO 9001 certified
Taiwan machines
All (3) rolls are hardened rolls, up to 50-52 HRC
3-rollers are driven to perform high accuracy
Adjustable cone attachment included

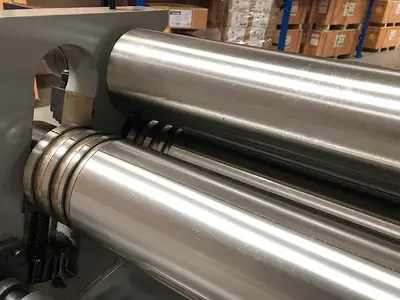

3/8”, ½” and 5/8” grooves on rollers

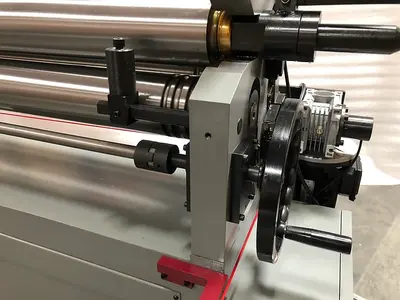

One wheel one-side operated for bending roll
One wheel one-site operated for pinch roll (E model is powered)
Heavy duty casting frame
Heavy duty all steel welded construction
1/3 of full length in middle of roller is straight, and two ends with crown to get perfect round performance.
Quiet running operation
Easy swing-out top roller
Safety line all around the machine for emergency stop
All rolls run forward and reverse
Safety type forward/reverse foot pedal
Power source 220V, (option: 440V, 3 phase)
One year industrial warranty for parts
STANDARD EQUIPMENT
Adjustable cone attachment
3/8”, ½” and 5/8” grooves on rollers
All (3) hardened rolls
Removable safety foot pedal
Operation & parts manual
Orange color front cover is optional.

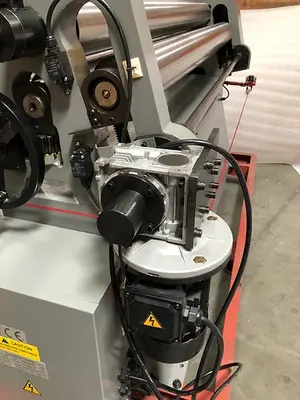

E models come with motorized bending roll up/down w/ push button and digital display for easy operation of repeat jobs
OPTIONAL EQUIPMENT
Safety fence for enclosure of the back side of the machine - $1,150.00
Capacity:
Mild Steel

8'2" x 10Ga.
Capacity:
Stainless Steel

8’2” x 14Ga.
Roll Dia.
6"
Min. Bending Dia. Inch
8"
Pre-bend inch
0.12"
Rolls Speed ft/min
17
Rolls Opening
1/2"
Main Motor
4HP 3PH
Weight
4,550 lbs.
Overal Dimensions
132" x 35" x 56"
