Equipped With

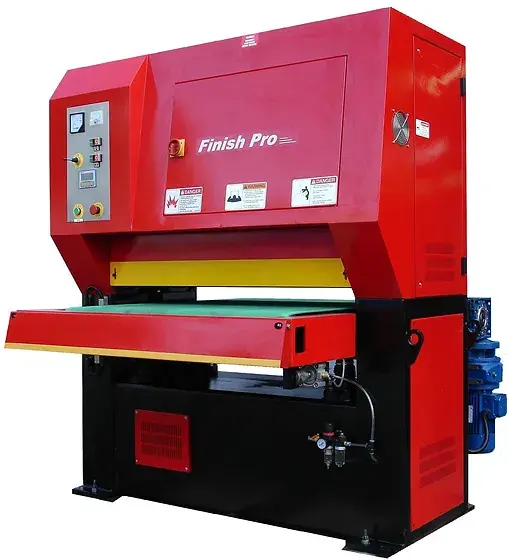

NEW 25" x 60" GMC MODEL FP-2560 WIDE BELT SANDING MACHINE
Motorized Table Lift, with digital readout
Variable Speed Conveyor
Conveyor Forward & Reverse

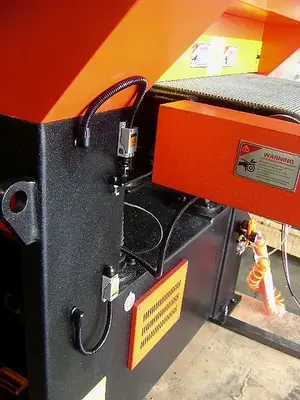

Belt Safety Overtravel Switches
Electronic Eye Belt Tracking. Belt tracking adjusting lever (Belt Trimmer) to Re-adjust the tracking system when running extremely out of parallel belts

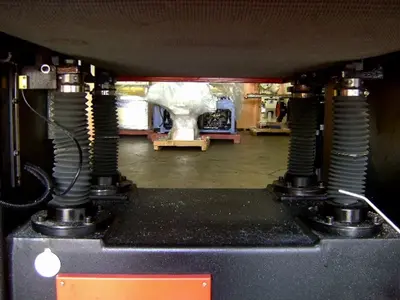

4-Jackscrew Table Support
Double Infeed & Outfeed Pinch Rolls with protective guards
Conveyor Belt Tracking System
Safety System with Disc Brake. Air operated disc brakes to stop sanding head in
3-5 seconds in the even of loss of air pressure or activation of any emergency stop device

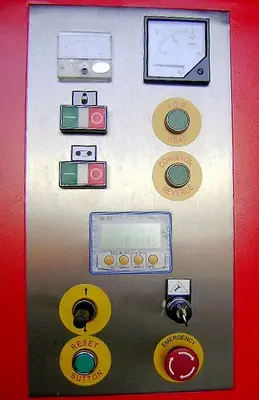

Table Height Digital Readout
Load Meter indicates percentage of full motor loads
Belt change door electrically interlocked for safety purpose
Air tensioning of belt for accurate tensioning & compensation of belt stretch
Quick release sanding head support for fast belt change
Dust collection hood with 4” outlet is located adjacent to abrasive head in sanding area
Emergency stops from almost any point
Noise level bellows 80 dba
Operation manual, control tags, danger signs, and warning labels in English on machine
208/230, 3-Phase
One year Industrial Warranty for parts
We strongly recommend to use good dust collector for our Finish Pro, otherwise, the warranty will be void
Prices are for 208-230 VOLTS
Total amps 45 @ 230/3/60
COMPRESSED AIR REQUIRED: 2 CFM @ 90 PSI
CAUTION: If fire hazardous materials, such as aluminum, titanium, magnesium, etc., are to be processed, a dust collection system that conforms to National Fire Protection Association (NFPA) should be used.
OPTIONAL EQUIPMENT
Wet Dust Collector #WDC-2100, 5 HP, 2,100CFM (it is demo wet collector, all stainless steel)
$8,900.00
Heavy Duty Ducting Package # HDDP-2560
$950.00
Service Engineer for Start-Up and On-site Training for # ST (plus travel expenses)
CALL US
Shipping + Delivery
FREE
Max. Part Width
24"
Abrasive Belt Size
25" x 60"

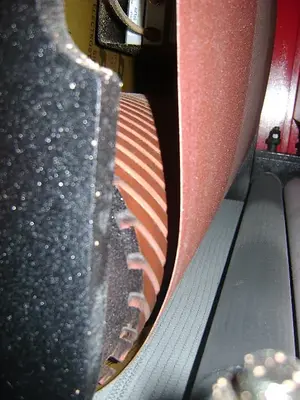

Contact Roller Size
8" Dia.
Passline Height
31" - 37"
Max. Thickness Capacity
Min. workpiece length
Max. workpiece weight
6 1/8"
Min 8”, need a fixture for smaller parts 375LBS
Conveyor Drive Speeds
8 - 40 FPM
Infeed Conveyor Length
20"
Dust Colector Capacity
1,100 CFM
Main Motor
10 HP 3 Phase 45A
Prewired: 230VAC
Optional: 440VAC (25A)

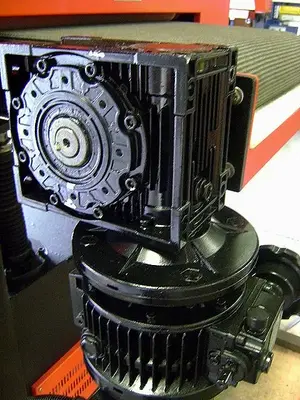

Conveyor Motor
1HP, 230V, 3PH
Table Lifting Motor
1HP, 230V, 3PH
Net Weight, Approx.
2,950 LBS
Machine Dimensions LxWxH
Shipping Dimensions:
55" x 63" x 69"
68" x 52" x 78"
