Equipped With

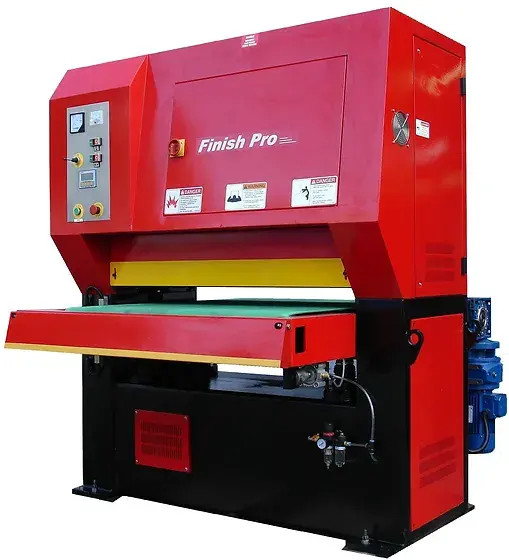

NEW 63" x 85" GMC MODEL FP-6385 WIDE BELT SANDING MACHINE
Abrasive belt size: 63” x 85”
10” diameter heavy duty drum for perfect graining
3-1/8” wide opening
Motorized Table Lift with LED display
Variable Speed Conveyor
Conveyor Forward & Reverse
Belt Safety Overtravel Switches

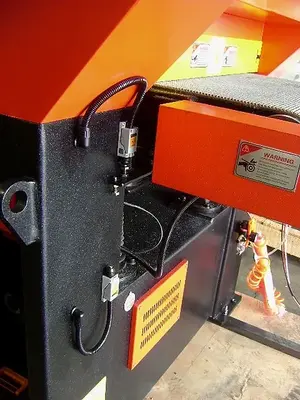

Electronic Eye Belt Tracking. Belt tracking adjusting lever ( Belt Trimmer ) to
Re-adjust the tracking system when running extremely out of parallel belts

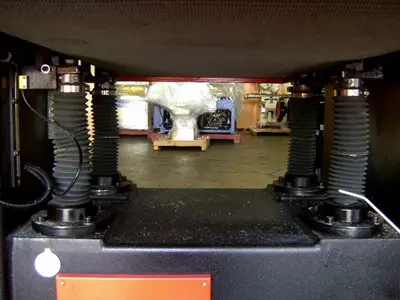

4-Jackscrew Table Support
Double Infeed & Outfeed Pinch Rolls with protective guards
Conveyor Belt Tracking System
Safety System with Disc Brake. Air operated disc brakes to stop sanding head in
3-5 seconds in the even of loss of air pressure or activation of any emergency stop device

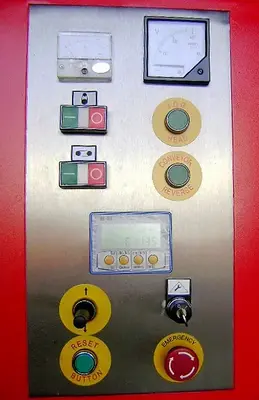

Table Height Digital Readout
Load Meter indicates percentage of full motor loads
Belt change door electrically interlocked for safety purpose

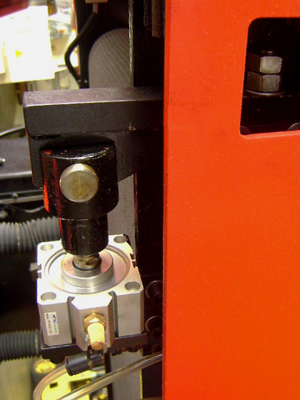

Air tensioning of belt for accurate tensioning & compensation of belt stretch
Quick release sanding head support for fast belt change
Dust collection hood with 6” outlet is located adjacent to abrasive head in sanding area
Emergency stops from almost any point
Noise level bellows 82 dba
Operation manual, control tags, danger signs, and warning labels in English on machine
208/230V, 3-Phase ( 440/460V is available )
One year Industrial Warranty for parts.
Prices are for 208-230 VOLTS
Total amps 150 @ 230/3/60
COMPRESSED AIR REQUIRED: 2 CFM @ 90 PSI
CAUTION: If fire hazardous materials, such as aluminum, titanium, magnesium, etc., are to be processed, a dust collection system that conforms to National Fire Protection Association (NFPA) should be used.
OPTIONAL EQUIPMENT
Wet Dust Collector,#WDC-2100 - 2,100CFM
$8,900.00
Heavy Duty Ducting Package # HDDP
$950.00
Service Engineer for Start-Up and On-site Training for # ST (plus travel expenses)
CALL US
Shipping (approx)
FREE
Max. Part Width
63"
Abrasive Belt Size
63" x 85"
Contact Roller Size
10" Dia.
Passline Height
31" - 37"
Max. Thickness Capacity
3-1/8"
Conveyor Drive Speeds
8 - 40 FPM
Infeed Conveyor Length
20"
Dust Colector Capacity
3,800 CFM
Main Motor
40 HP, 230V / 460V, 3PH

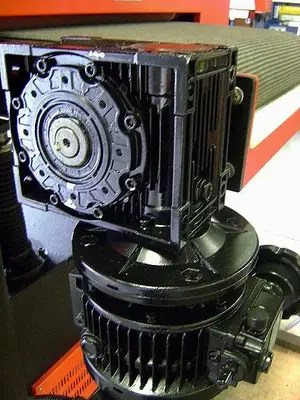

Conveyor Motor
3 HP, 230V / 460V, 3PH
Table Lifting Motor
3 HP, 230V / 460V, 3PH
Net Weight, Approx.
8,650 LBS
Machine Dimensions LxWxH
79" x 95" x 83"
