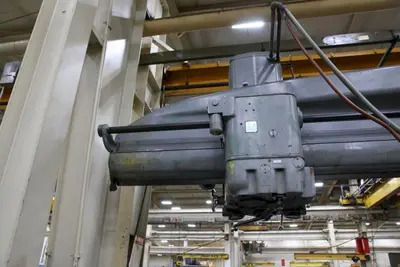

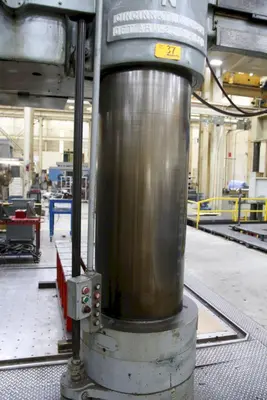

USED 1977 CARLTON 5A

Equipped With

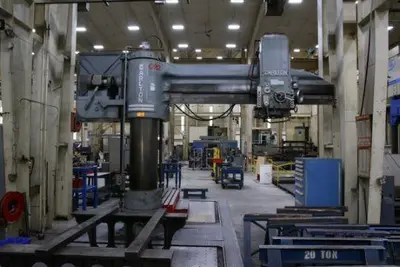

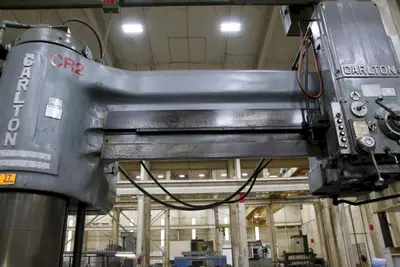

10' X 22" CARLTON MODEL #5A RADIAL DRILL
New 1977
SPINDLE SPEEDS ....................... (12) 10 TO 1000 RPM
THREADS .............................. (5) 6, 7, 8, 11-1/2, 18
DISTANCE SPINDLE TO FLOOR ............. 18-1/2" MIN, TO 98" MAX
SPINDLE TRAVEL ....................... 24"
TAPER IN SPINDLE ..................... #6 MT
DIAMETER OF SPINDLE .................. 4"
TRAVEL OF ARM ON COLUMN .............. 54"
TRAVEL OF HEAD ON ARM ................ 105"
POWER HEAD CLAMPING .................. YES
POWER HEAD TRAVERSE .................. YES
POWER ELEVATION ...................... YES
SPINDLE MOTOR ........................ 40 HORSEPOWER
