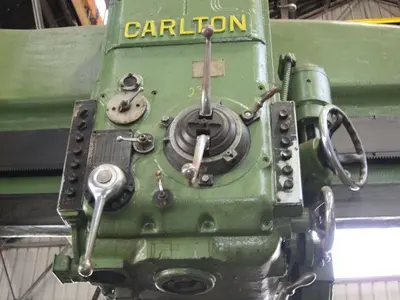

USED CARLTON 5A

Equipped With

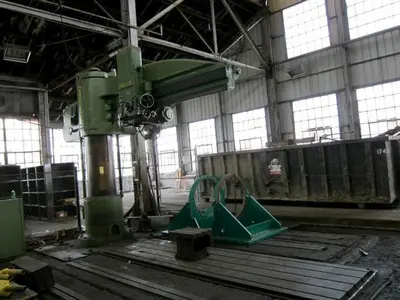

12' X 26" CARLTON MODEL 5A RADIAL ARM DRILL
MODEL ............................. 5A
AREA OF BASE....................... 130" X 57"
SPINDLE SPEEDS..................... (12) 10 TO 1000 RPM
FEEDS.............................. (18) .004 TO .250
THREADS............................ (5) 6, 7, 8, 11-1/2, 18
DISTANCE SPINDLE TO BASE........... 18-1/2" MINIMUM, 96" MAXIMUM
DISTANCE SPINDLE TO COLUMN......... 15" MINIMUM, 120" MAXIMUM
SPINDLE TRAVEL..................... 24"
TAPER IN SPINDLE................... #6MT
DIAMETER OF SPINDLE................ 4"
TRAVEL OF ARM ON COLUMN............ 54"
TRAVEL OF HEAD ON ARM.............. 105"
POWER ELEVATION ................... YES
POWER HEAD TRAVERSE ............... YES
POWER CLAMPING .................... YES
MOTOR ............................. 30 HORSEPOWER
