Equipped With

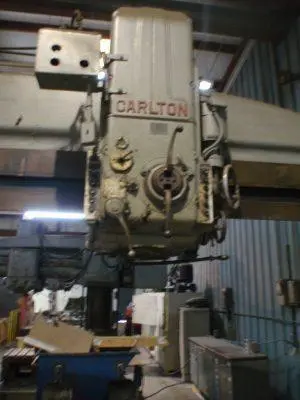

12' X 26" CARLTON MODEL 5A RADIAL ARM DRILL
Column Diameter 26″
Arm Length 12′
Face of Column to Center of Spindle 16.5″ – 12′
Spindle Radius 34″ – 13’6″
Spindle to Base 20.5″ – 8’4″
Working Surface of Base 4’9″ x 12’6″
Height 12″
Vertical Travel of Spindle in Head 24″
Bearing of Head on Arm 23 1/4″
Bearing of Arm on Column 52″
Height over Head, Max. 14′ 8″
Height over Column Capacity 14′ 5″
Spindle Diameter 4″
Morse Taper in Spindle #6
Traverse of Arm on Column 4′ 7 1/2″
Traverse of Head on Arm 10’8″
Drills to Center of Circle 24′
Swing of Arm 14′ 9″
Feed and Tap Leads (18) .004″ to .125″
Number of Spindle Speeds (16)
Weight 64,250 lbs.
