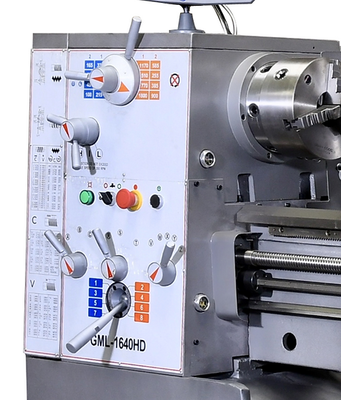

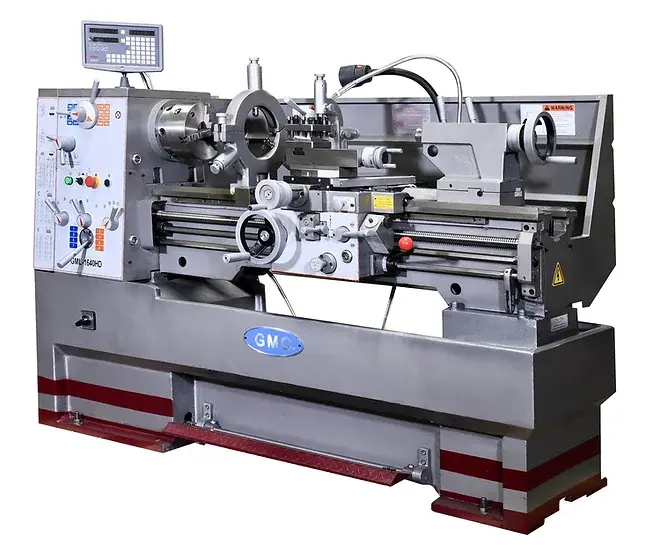

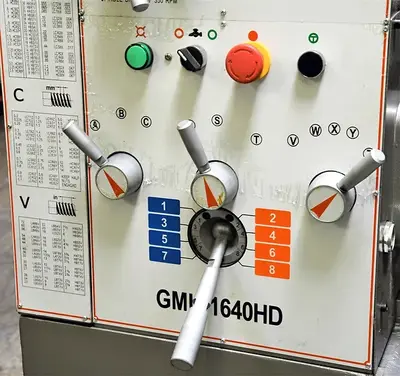

NEW GMC GML-1640HD

Equipped With
NEW 16" X 60" GMC MODEL GML-1660HD HEAVY DUTY PRECISION GAP BED LATHE
ISO 9001 certified
Large spindle bore 2-1/16”
Heavy Duty spindle D1-6
One-piece solid cast iron machine base
Heavy Duty guideway width 10-1/4”
Heavy Duty main motor 6 HP
16 spindle speeds from 45-1,800 rpm, speeds: 45/70/90/108/140/165/215/255/330/385/510/585/770/900/1170/1800rpm
45 kinds of inch threads, and 39 kinds of metric threads
Threading and feeding rate change without changing gears
Spindle is balanced, hardened and precision ground
Spindle is supported at 3-point by high precision bearings
All gears and shafts are hardened and precision ground
Guideways induction hardened and precision ground
Automatic lubrication system in headstock and feed box
One year industrial  warranty for parts
STANDARD EQUIPMENT
SINO DRO (installed)
Taper turning attachment (installed)
8” 3-jaw chuck with one set of reversible jaws
10” 4-jaw chuck
12” Face plate
5 1/2” large steady rest with roller jaws (bearings)
Oil pump on Apron for all guideways and leadscrews
2” follow rest with roller jaws (bearings)
Removeable gap

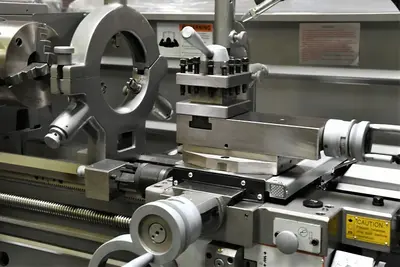

4-way tools post
Foot brake
Halogen Work light and coolant system
Full length splash guard
(2) dead centers and (1) reducing sleeve MT6/MT4
Thread chasing dial
Tool box and leveling pads
OPTIONAL EQUIPMENT
Micro Carriage Stop #MCS-GML-1660HD
5-C Hand lever type collet closer#5C-1660HD, free install
 33 pc 5C collet set, from 1/16 to 1-1/16” by 32ndth, #900-0014
ALORIS type QC tool post set #900-0051-300, 6 pcs
Live Center #900-0050-04
5pc Indexable carbide turning set #2003-0004
3/8” carbide insert #2003-0014
Lathe package 1 #GMCLSUP101
 5pc indexable carbide turning set
½ drill chuck # 700-0102
Chuck arbor # MT4
29pc Titanium drill bit set #5000-0001T
Max. swing over bed
16-1/16"
Max. length of workpiece
60"
Max. swing over cross slide
10-1/4"
Max. Swing in gap
23-1/4"
Width of Bed
10-1/4"
Effective length in gap to spindle
8-1/2"
Effective length in gap to chuck jaws
3-1/2"
Spindle bore
2-1/16" D1-6
Taper of spindle center
M.T. #6 (MT6/MT4 sleeve)
Spindle speeds
45-1,800 rpm / 16 steps
Longitudinal feeds
0.0018-0.07 IPR, 42 kinds
Cross feeds
0.0009-0.03 IPR, 42 kinds
Inch threads
70-2 TPI, 45 kinds
Metric threads
0.2-14 mm , 39 kinds
Diametral Pitch threads
8-40 DP , 21 kinds
Module threads
0.3-3.6 mm, 18 kinds
Max. travel of top slide
4-1/4"
Max. travel of cross slide
8-1/2"
Spindle length w/o chuck
Leadscrew length X TPI
20-1/2"
1-1/4" x 4 TPI
Diameter of tailstock quill
2-1/16"
Max. travel of tailstock quill
5"
Taper of tailstock quill center
MT4
Main motor:


Note:
6 HP, 3 Phase, 20AMP
Prewired: 220VAC

30AMP Breaker Needed ( 20A x 1.5 )
Coolant pump:
1/8 HP, 220V, 3 Phase
Oil for Headstock / Gear box / Apron
#30 weight machine oil
Eg: Texaco regal R&O 100, 3 Gal.
Net weight:
4,850 lbs.
Overall Dimensions (LxWxH):
100" X 32" x 56"

Please note that this lathe is incompatible with the use of a rotary phase converter. Any attempt to purchase, install, or employ one, whether carried out by you or a professional service company, will automatically void the warranty. It is crucial to understand that any such actions are entirely the responsibility of the buyer. This disclaimer is intended to clearly convey that the utilization of a rotary phase converter to power or operate this metal lathe is not supported.
