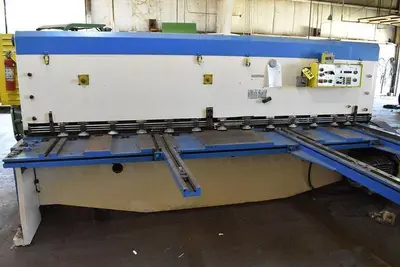

10" X 1/4" AMADA "M3060" MECHANICAL POWER SQUARING SHEAR
New 1987
EQUIPPED WITH:

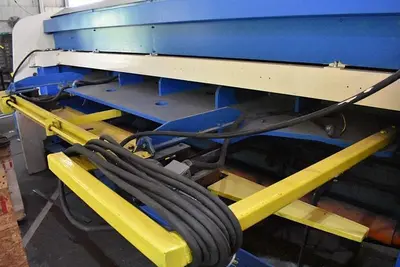

42" Front Operated Power Back Gauge

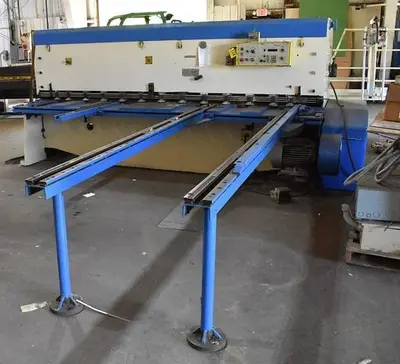

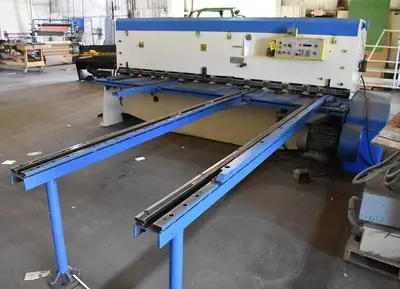

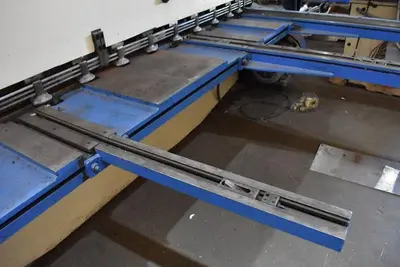

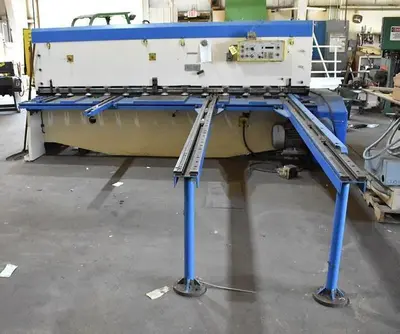

(2) 135" Squaring Arms - (1) Front Support

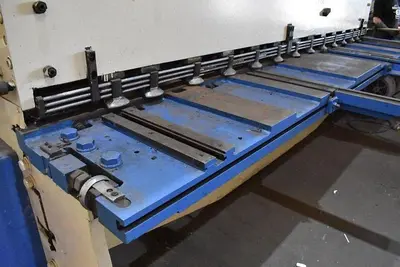

Hydraulic Hold Downs - Remote Foot Switch
All Steel Frame Construction
One Shot Lubrication System
CATALOG SPECIFICATIONS:
Capacity, Mild Steel .......... 10' x 1/4"
Blade Length .......... 133"
Gap Depth .......... 11"
Strokes Per Minute .......... 60 SPM
Rake Angle, Taper Per Foot .......... 1-DEGREE
Electrical System .......... 230-460/3/60
Overall Dimensions, L x W .......... 15' x 6'4"
Overall Height .......... 6'1"
Weight, Approximately .......... 16000 LBS.
