Equipped With

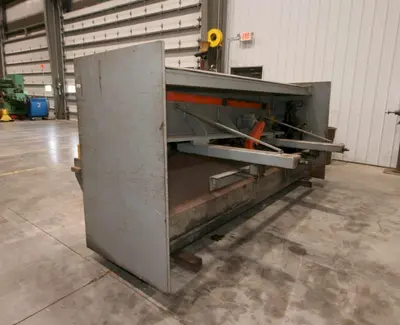

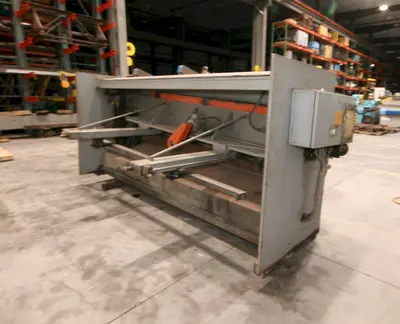

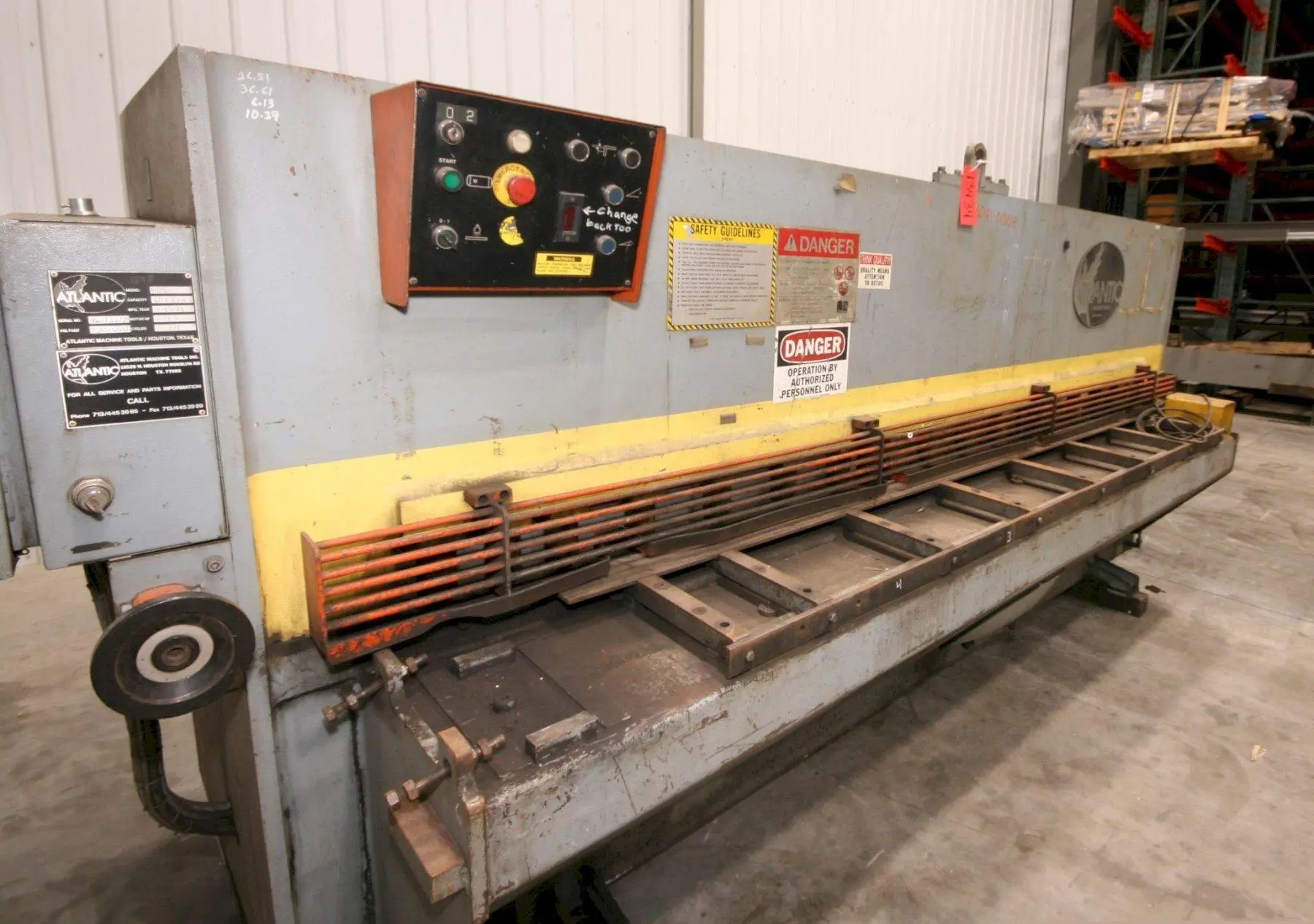

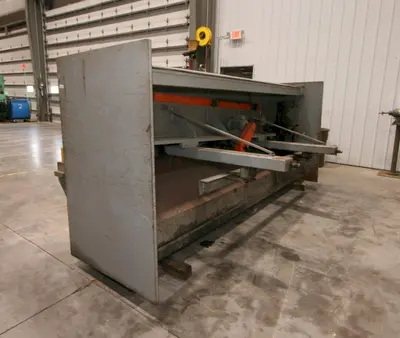

1/4" X 10' ATLANTIC MODEL HDE HYDRAULIC SHEAR
Specifications:
Capacity, Mild Steel ¼”
Capacity, Stainless Steel 10 GA
Cutting Length 122”
Angle Adjustment 1 3°
Number of Plate Hold Downs 18
Number of Strokes / min. 10 25
Length of Squaring Arm 40”
Back Gauge Range 32” / 39”
Working Height 31”
Motor 15 HP
Dimensions 157” x 77”
Height 63”
Approx. Weight 10,500 lbs.
