USED 2012 HAAS DS-30

Equipped With

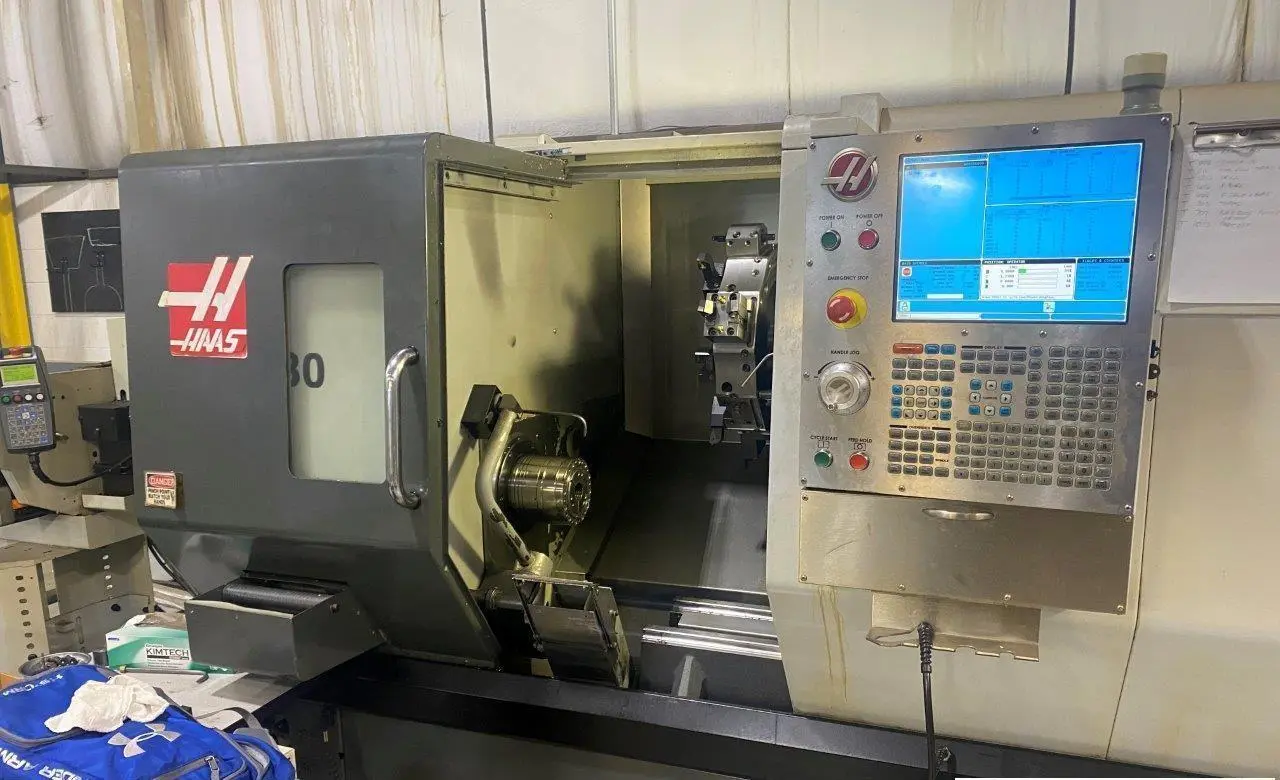

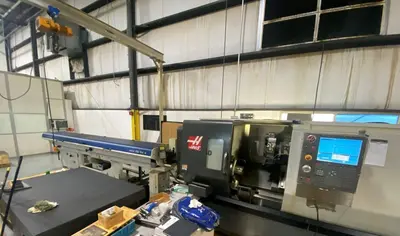

HAAS DS-30 DUAL SPINDLE CNC LATHE
New 2012

Equipped With:

Haas CNC Control

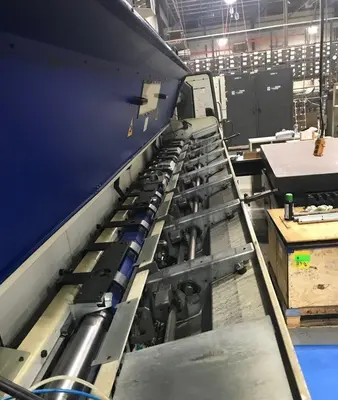

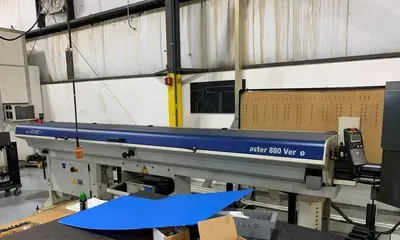

IEMCA Master 880 MP Bar Feeder
Live Tooling
12-Station Hybrid Turret (6 VDI/6 BOT)
15" Color LCD Monitor
Memory Lock Key Switch
USB Port
Rigid Tapping
Coolant Tank
Collet Chuck on Main Spindle
Belt-Type Chip Conveyor
Parts Catcher System
Live Tooling (LT2-HT) - High Torque Live Tooling W/C Axis; Requires VDI or VG Hybrid Turret
Automatic Tool Pre-setter
*Includes Standard Toolholder Kit
SPECIFIATIONS:
Number of Axis: 5
Swing: 31.75"
Turning Diameter: 17.99"
Center Distance: 25.98"
Chuck Size: 8"
Bar Capacity: 3"
X-Axis Travel: 12.52"
Z-Axis Travel: 25.98"
B-Axis Travel (Sub-Spindle): 25.98"
C-Axis Index: 0.001 Degrees
Spindle Nose: A2-6
Spindle Speed: 4000 RPM
Main Motor: 30 HP
Live Tooling Speed: 6000 RPM
Live Tooling Motor: 5 HP
Turret Capacity: 12
Dimensions: 130" x 90" x 83" H
Approximate Weight: 15,000#
