Equipped With

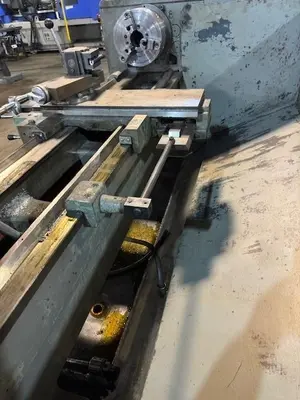

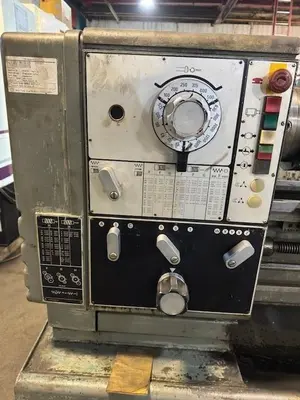

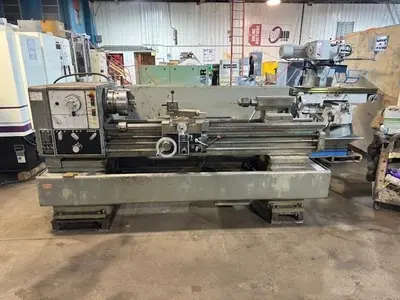

16" X 54" HARRISON MODEL M400 ENGINE LATHE
New 1985
SPECIFICATIONS:
16" Swing over bed
54” between centers
8.26” Swing over the cross slide
40 to 2000 RPM Spindle Speeds
2 3/4" Hole thru Spindle
D1-4 camlock spindle nose
1.63” Tailstock quill diameter with 3 morse taper bore,
Inch/Metric threading with various pitch settings,
230/460 Volts, 3 Phase
Taper Attachment
10" 3 Jaw Chuck
12" 4 Jaw Chuck
steady Rest
Coolant
460 Volts
