NEW GMC BB-612-6HD

Equipped With

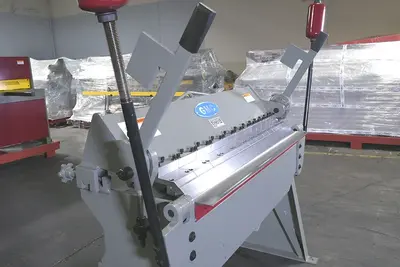

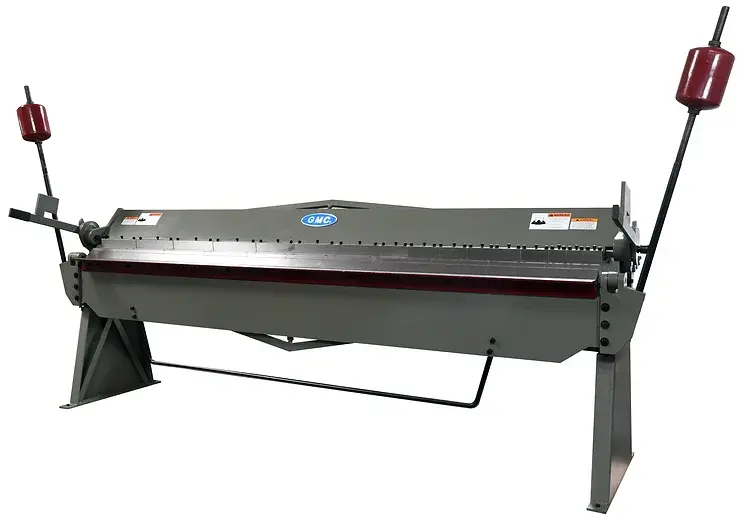

NEW 10' X 14GA GMC MODEL BB-612-6HD BOX AND PAN BRAKE
Pan & Box Brakes are hand operated machines with removable fingers and a large beam opening. With this Brake, you can fabricate pans, boxes, channels, angles, and other metal working shapes.

ISO 9002 certified
Large 1-9/16” beam opening, adjustable
1” beam adjustment (front and back)
Hem light gauge material 26 Ga. or thinner
Total pieces fingers assortment:
BB-412-6HD: 2”/1pc, 3”/4pcs, 4”/2pcs, 25”/1pc
BB-612-6HD: 2”/2pcs, 3”/2pcs, 4”/1pc, 5”/3pcs, 6”/3pcs, 11”/3pcs
Stop rods for repeat bends
All steel heavy body construction with extra heavy tie rod for minimum deflection
One year parts only warranty
Bending capacity in Mild Steel:
12 Ga.
Bending capacity in Stainless Steel:
16 Ga.
Max. hemming thickness for mild steel:
26 Ga.
Max. box depth
6"
Bending length capacity
6’
Bending angle, degree
0-135
Beam adjustment, front and back
1"
Minimum reserve bend
1/2"
Manual clamping
Standard
Beam opening
1-9/16"
Net weight
2,250 lbs.
Shipping weight:
2,350 lbs.
Machine Dimensions:
120" x 32" x 77"
Shipping Dimensions:
100” x 30” x 40”
OPTIONAL EQUIPMENT
2"  replacement finger - $115.00
3" replacement finger - $115.00
4"replacement finger - $135.00
5" or 6" replacement finger - $175.00
11" replacement finger - $175.00
25" replacement finger - $275.00
