Equipped With

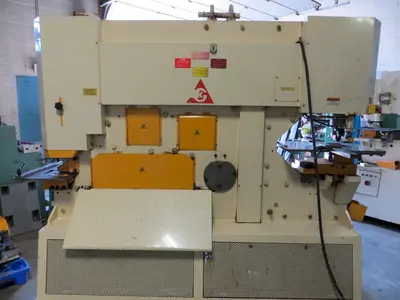

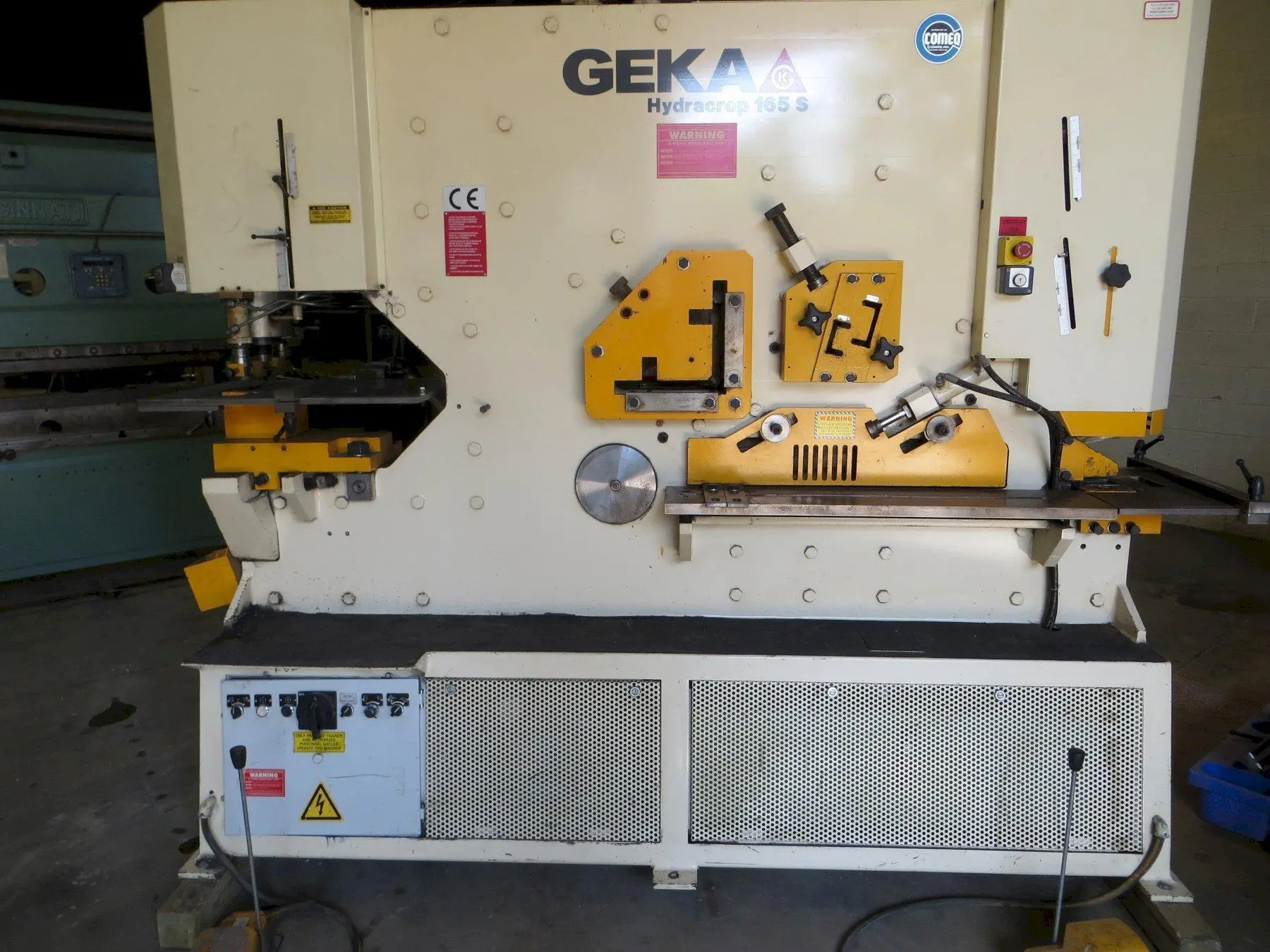

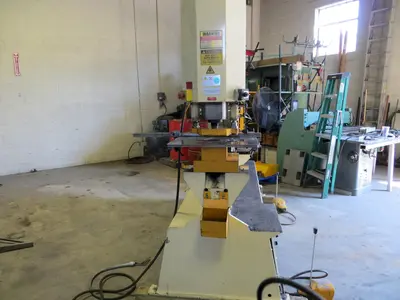

185 TON GEKA HYDRACROP MODEL 165S HYDRAULILC IRONWORKER
New 2012
Specifications:
PUNCHING CAPACITY ..................... 185 TONS
PUNCHING CAPACITY (HOLE SIZE) .......... 1-1/2" IN 1-1/4" Steel
STROKE ................................. 3-15/16"
THROAT DEPTH ........................... 20"
NOTCHER CAPACITY ....................... 5/8" X 4-5/16" X 2-1/4"
ANGLE CAPACITY 90 DEG .................. 8" x 8" x 3/4"
ANGLE CAPACITY 45 DEG .................. 3" X 3" X 5/16"
BAR SHEAR SECTION CAPACITY ............. 2-3/8" ROUND & SQUARE
PLATE SHEAR CAPACITY.................... 30" X 3/4"
20" x 1"
WEIGHT ................................. 11,465 LBS.
PUMP MOTOR ............................. 20 HP
DIMENSIONS: 112" X 64" X 87" (l x w x h) - Approximate
FEATURES:
- HYDRAULIC PUNCH STRIPPER
- HYDRAULIC PLATE SHEAR HOLDDOWN
- TWO ELECTRIC FOOT PEDAL
- DUAL OPERATOR
- ELECTRIC LENGTH GAUGE
- MISC. TOOLING
- MISC. ACCESSORIES
