NEW GMC BB-412-6HD

Equipped With

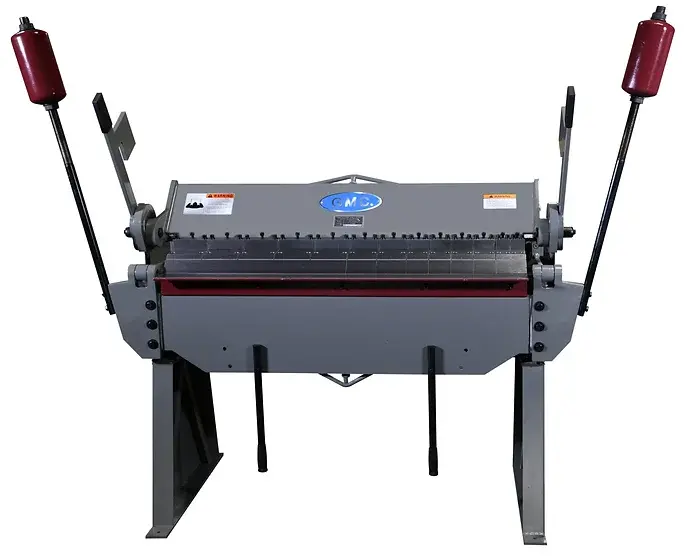

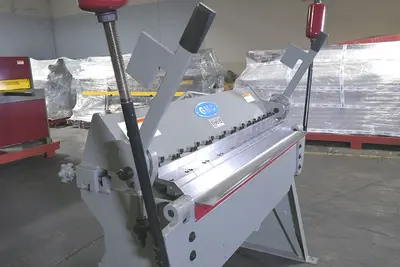

NEW 48" GMC MODEL BB-412-6HD BOX AND PAN BRAKE
Pan & Box Brakes are hand operated machines with removable fingers and a large beam opening. With this Brake, you can fabricate pans, boxes, channels, angles, and other metal working shapes.

ISO 9002 certified
1-year parts only warranty
Bend up to 12 gauge mild steel x 48" in length (compact)
Large 1-9/16” beam opening, adjustable

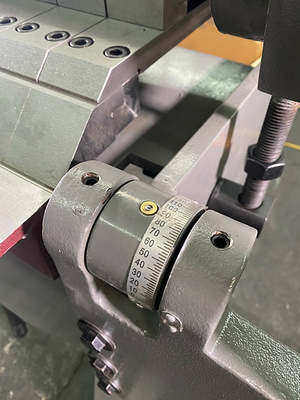

135 degree bend angle capacity with built in scale
2 - handwheels on the rear to ajust the gap
1” beam adjustment (front and back)
Hem light gauge material 26 Ga. or thinner
2 - 30 lbs. adjustable counterweights
Includes 9 fingers total: (measures 49")
2 - 2"
4 - 3"
2 - 4"
1 - 25"
1 - Simple stop rod is included to make repeat bends
All steel heavy body construction with extra heavy tie rod for minimum deflection
Bending capacity in Mild Steel:
12 Ga.
Bending capacity in Stainless Steel:
16 Ga.
Max. hemming thickness for mild steel:
26 Ga.
Max. box depth
6"
Bending length capacity
4’
Bending angle, degree
0-135
Beam adjustment, front and back
1"
Minimum reserve bend
1/2"
Manual clamping
Standard
Beam opening
1-9/16"
Net weight
1,150 lbs.
Shipping weight:
1,265 lbs.
Machine Dimensions:
82" x 32" x 69"
Shipping Dimensions:
67” x 30” x 38”
OPTIONAL EQUIPMENT
2"  replacement finger - $115.00
3" replacement finger - $115.00
4"replacement finger - $135.00
25" replacement finger - $275.00
