Equipped With

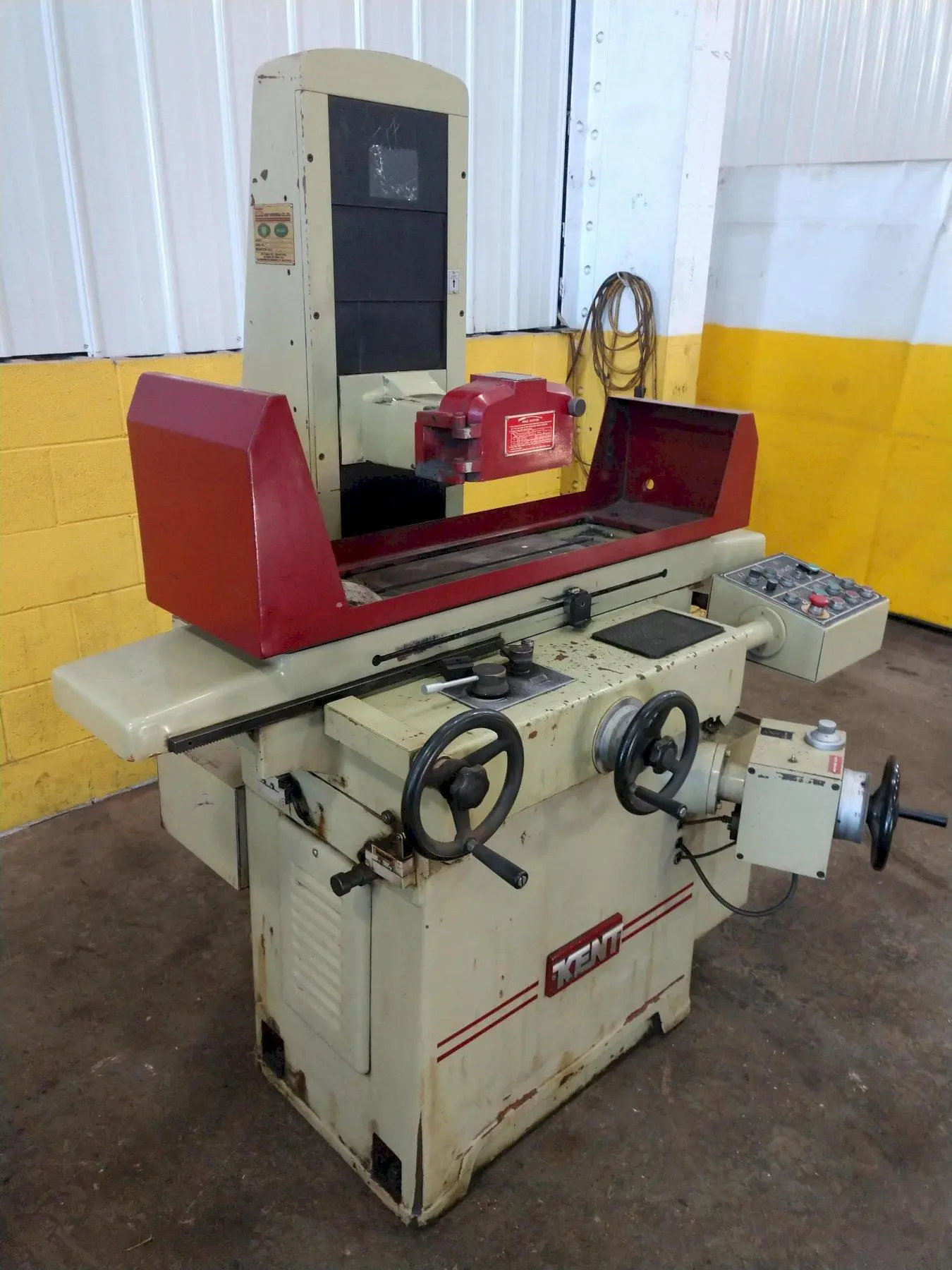

8" X 18" KENT MODEL KGS-818AHD AUTOMATIC HYDRAULIC SURFACE GRINDER
TABLE WORKING SURFACE ................ 8" X 18"
MAXIMUM TABLE TRAVEL ................. 19" X 10"
TABLE TO SPINDLE CENTER, MAXIMUM ..... 19"
LONGITUDINAL HYDRAULIC FEED RATES .... 16 TO 75 FPM
CROSS POWER FEED ..................... .004" TO .3" PER STROKE
RAPID CROSS FEED ..................... 35 IPM
AUTOMATIC DOWNFEED INCREMENT ......... .0001" TO .001"
HAND FEED PER REVOLUTION/GRADUATION .. .2"/.001"
SPINDLE MOTOR ........................ 1.5 HP 220/440/3/60
HYDRAULIC PUMP ....................... 1 HP 220/440/3/60
GRINDING WHEEL ( STANDARD WHEEL ) .... 7" X 1/2" X 1.25"
INCREMENTAL DOWN FEED ................ POWER
LONGITUDINAL & CROSS FEEDS ........... POWER
COOLANT SYSTEM ....................... YES
ONE SHOT LUBRICATION ................. YES
SPLASH GUARDS ........................ YES
HYDRAULIC UNIT ....................... YES
