Equipped With

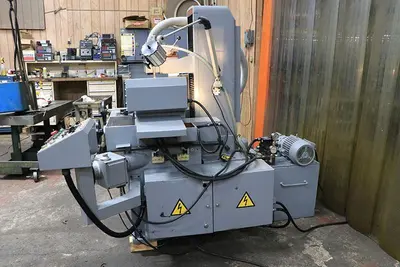

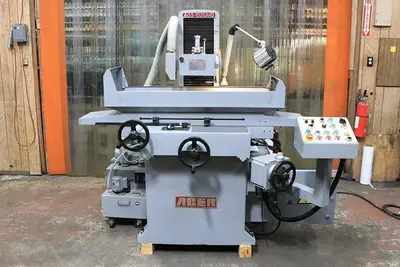

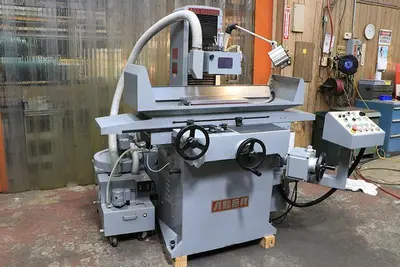

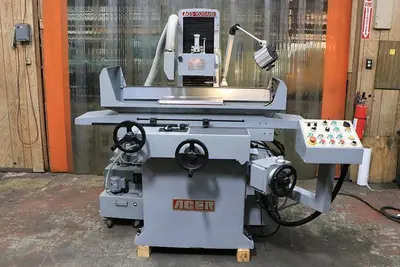

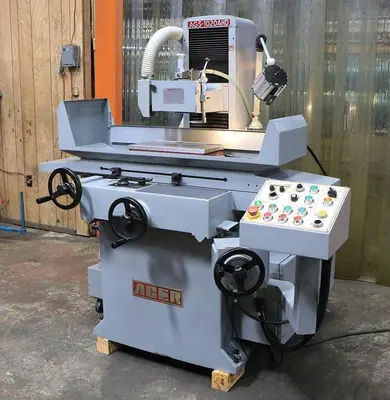

8" X 18" ACER "PRECISION" AGS-1020AHD 3-AXIS AUTOMATIC FEEDS SURFACE GRINDER WITH AUTOMATIC INCREMENTAL DOWNFEED
New 2016
MAX. SURFACE GROUND .................. 10" X 20"
DIST. FROM SPINDLE CENTER TO TABLE ... 19- 1/2"
VARIABLE TABLE SPEED, HYDRAULIC ...... 16' TO 80' FPM
MAX. TABLE TRAVEL .................... 20- 1/2"
AUTOMATIC CROSSFEED INCREMENT ........ 0" TO 1"
MAX. CROSSFEED TRAVEL ................ 11"
DOWNFEED HANDWHEEL PER GRADUATION .... 0.0005"
PER REVOLUTION ....................... 0.1"
CROSSFEED HANDWHEEL PER GRADUATION ... 0.001"
PER REVOLUTION ....................... 0.2"
AUTO INCREMENTAL DOWNFEED ............ 0.001" TO .0001"
SPINDLE MOTOR ........................ 2 H.P.
STANDARD GRINDING WHEEL .............. 8"D x 1/2" x 1- 1/4"
APPROX. WEIGHT ....................... 2,970 LBS
EQUIPPED WITH:
AUTOMATIC INCREMENTAL DOWNFEED (SURFACE & PLUNGE)
POWER RAPID WHEELHEAD POSITIONING OPTION BY
PUSHBUTTON ON CONSOLE, OUR MACHINE HAS THIS!
HYDRAULICALLY POWERED LONGITUDINAL FEED
POWER CROSSFEED
TURCITE-B ON THE LONGITUDINAL WAYS (LOW FRICTION & WEAR)

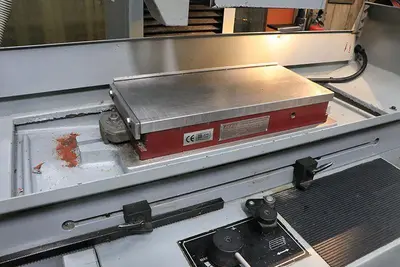

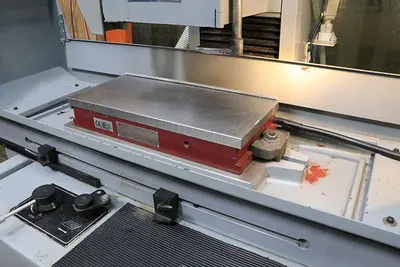

8" x 18" "ACER" FINE-DIVISION" ELECTRO-MAGNETIC CHUCK
VARIABLE HOLD NEUTROFIER CONTROL

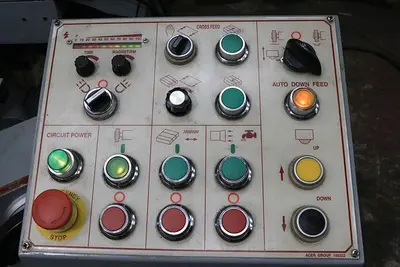

ON THE MACHINE CONSOLE CONTROL

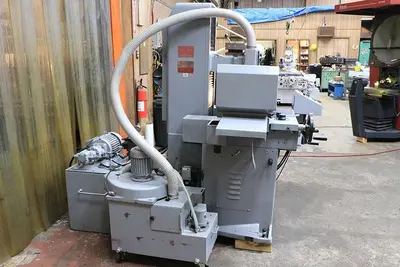

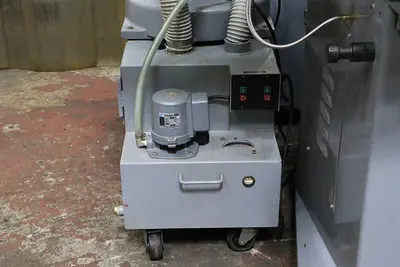

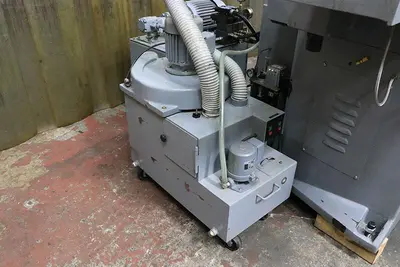

COMBINATION COOLANT SYSTEM & DUST COLLECTOR

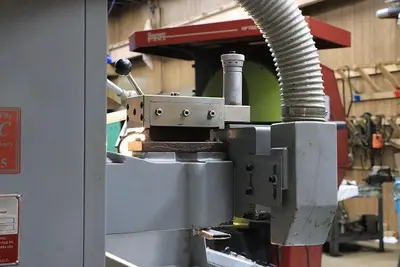

OVER-THE-WHEEL DRESSER
MEEHANITE CASTING
AUTO LUBE SYSTEM

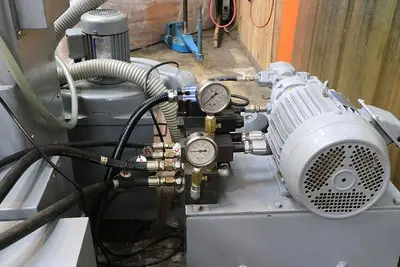

EXTERNAL HYDRAULIC SYSTEM

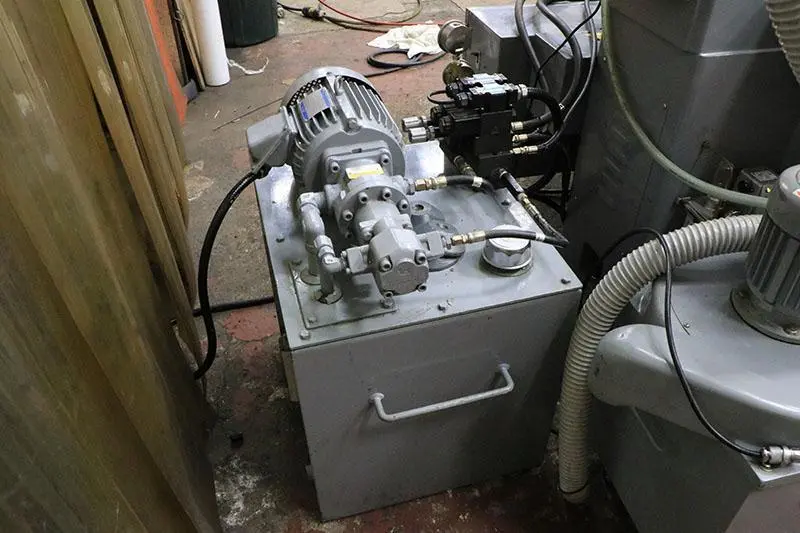

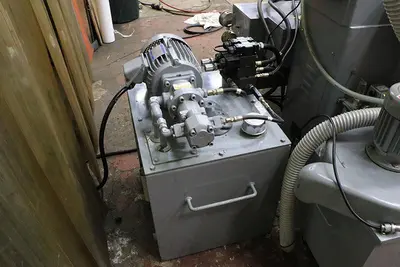

2 HP 3/60/230-460 VOLT EXTERNAL HYDRAULIC PUMP MOTOR & TANK
2 HP 3/60/230-460 VOLT SPINDLE MOTOR

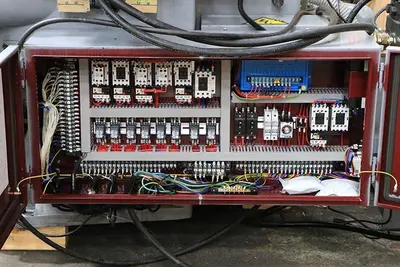

MACHINE IS WIRED FOR 3/60/230 VOLTS
** FROM THE "GREENVILLE TECHNICAL COLLEGES"
IN SOUTH CAROLINA. USED FOR TEACHING PURPOSES.
EXCEPTIONAL CONDITION & APPEARANCE **
