USED 1998 ACER AGS-1020AHD

Equipped With

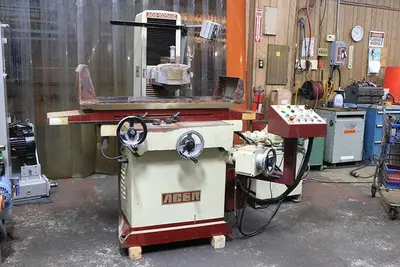

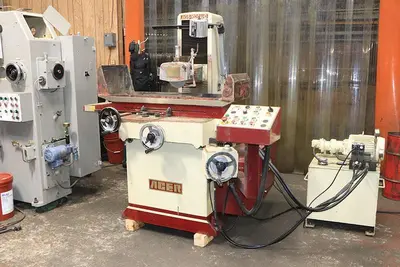

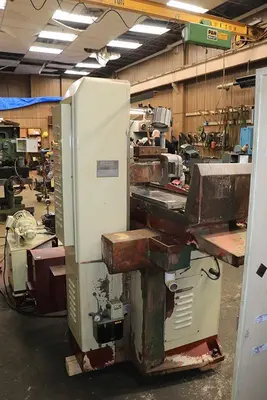

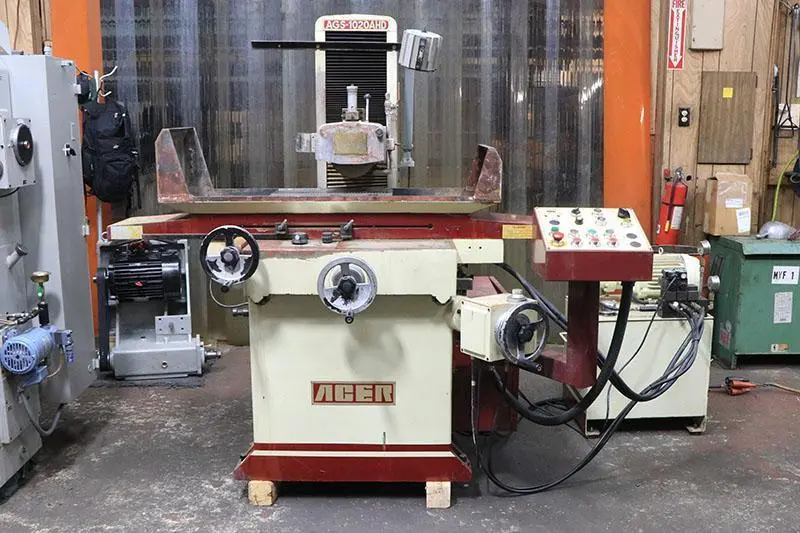

8" X 18" ACER MODEL AGS-1020AHD HYDRAULIC SURFACE GRINDER  W/AUTOMATIC INCREMENTAL DOWNFEED
New 1998
MAX. SURFACE GROUND ........................ 10" X 20"
DIST. FROM SPINDLE CENTER TO TABLE ......... 19- 1/2"
VARIABLE TABLE SPEED, HYDRAULIC ......       16' TO 80' FPM
MAX. TABLE TRAVEL .......................... 20- 1/2"
AUTOMATIC CROSSFEED INCREMENT .............. 0" TO 1"
MAX. CROSSFEED TRAVEL ...................... 11"
DOWNFEED HANDWHEEL PER GRADUATION .......... 0.0005"
PER REVOLUTION ............................. 0.1"
CROSSFEED HANDWHEEL PER GRADUATION ......... 0.001"
PER REVOLUTION ............................. 0.2"
AUTO INCREMENTAL DOWNFEED .................. 0.001" TO .0001"
SPINDLE MOTOR .............................. 2 H.P.
STANDARD GRINDING WHEEL .................... 8"D X 1/2" X 1- 1/4"
MAXIMUM TABLE LOAD CAP. INCLUDING CHUCK ..   700 LBS.

APPROX. WEIGHT ............................. 2,970 LBS
FLOOR SPACE REQUIRED ....................... 71"L-R X 55"W X 70"H

  EQUIPPED WITH:
AUTOMATIC INCREMENTAL DOWNFEED (SURFACE & PLUNGE)

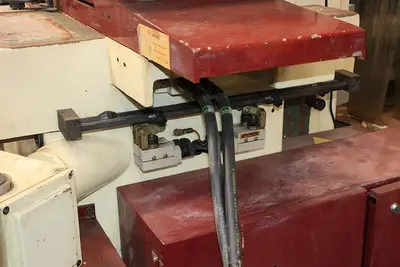

HYDRAULICALLY POWERED LONGITUDINAL FEED
POWER CROSSFEED
TURCITE-B ON THE LONGITUDINAL WAYS (LOW FRICTION & WEAR)

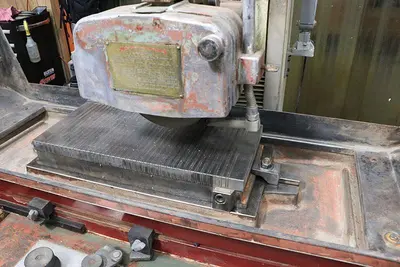

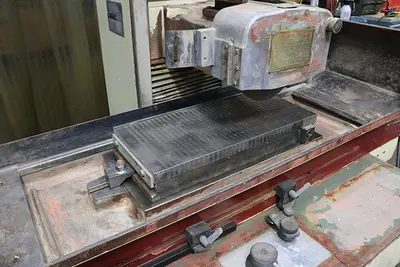

8" x 18" PERMANENT MAGNETIC CHUCK
COMBINATION COOLANT SYSTEM & DUST COLLECTOR

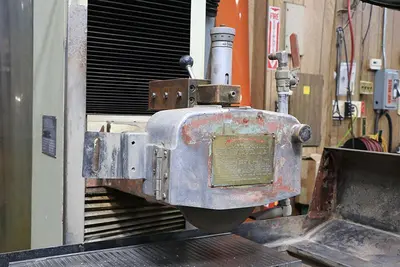

OVER-THE-WHEEL DRESSER
MEEHANITE CASTING

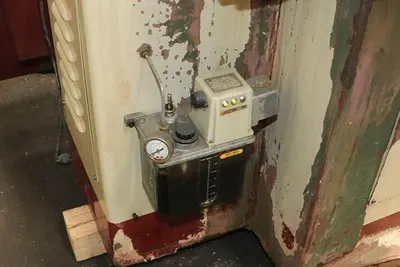

AUTO LUBE SYSTEM

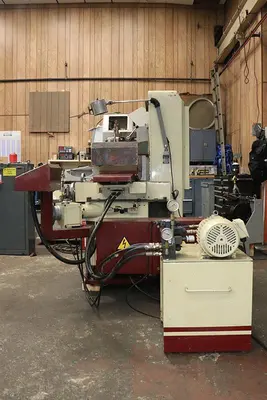

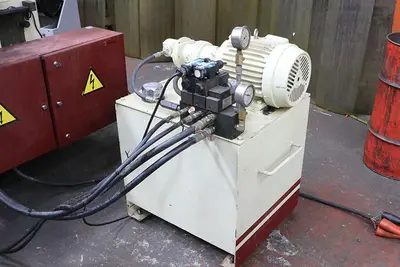

EXTERNAL HYDRAULIC SYSTEM
2 HP 3/60/230-460 VOLT EXTERNAL HYDRAULIC PUMP MOTOR & TANK
2 HP 3/60/230-460 VOLT SPINDLE MOTOR
WIRED PRESENTLY FOR 220 VOLTS
