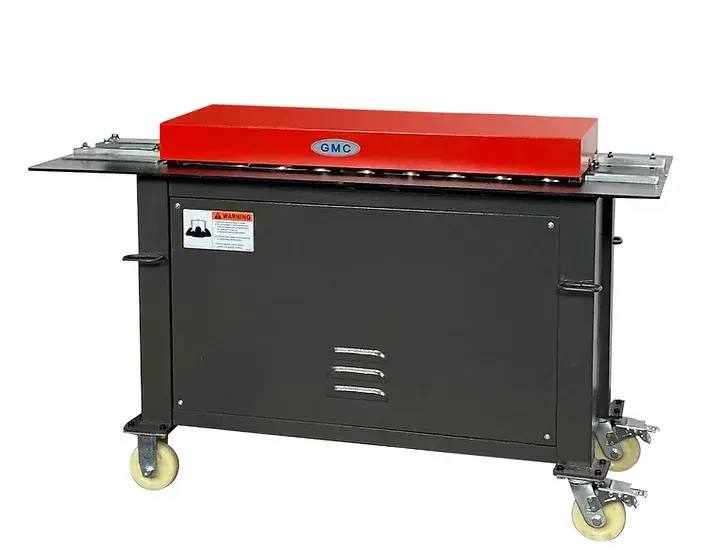

NEW GMC PL-18C

Equipped With
NEW GMC MODEL PL-18HEM HEMMING FORMING MACHINE
STANDARD FEATURES
ISO 9001 certified
2HP Heavy Duty AC main motor, 110V
Heavy welded all steel construction for maximum rigidity
One year warranty for parts
INCLUDES
Standard rolls for Germany female lock, installed
Standard rolls for Germany male lock, installed
OPTIONS
Right Angle Roll # RAR-18E, ¼”,3/8” & ½” …………………. $995.00
SPECIFICATIONS
Capacity:
Germany female lock
Germany male lock

          26 Ga. to 18Ga.
          26 Ga. to 18Ga.
Depth of pocket
              1/2”
Feeding speed
          23 FPM
Main motor
Amperage draw
        2 HP, 110V
          15 Amp
weight, approx
              517 LBS
Machine dimensions, LxWxH
Machine shipping dimensions, LWH
        42”x22”x43”
        43” x 25” x46”
