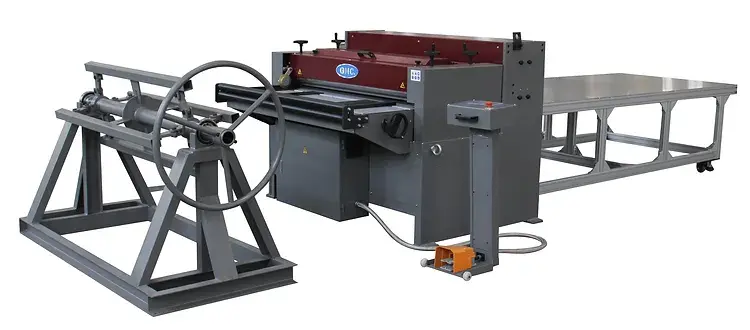

NEW GMC PS-4816GT

Equipped With
NEW GMC MODEL PS-4816GT GANG TYPE METAL POWERED SLITTER WITH PROGRAMMABLE CUT TO LENGTH
STANDARD FEATURES
ISO 9001 certified
American design and Taiwan quality machine
Slit and cut to length in one unit
NC programmable cutting length, 100 job memory feature
Single cycle Mode-manual shearing with foot pedal when programmed length is reach for each cut.
Auto cycle mode-shearing will auto cycle the programmed cut lengths.
Easy removal of slitting blades for cut to length operations without slitting.
feed the sheet metal from the manual decoiler to cut to length without slitting blades
5” Omron touch screen
3-1/8” diameter shafts mounted in precision ball sealed bearings
Slitting blades are dual edged
Safety type foot pedal control
One year warranty for parts
STANDARD EQUIPMENT
Comes with 6 sets of slitting blades to slit max 7 trips, change it to 7 strips
full length finger guard
Removable safety foot pedal control
One set of upper & lower shearing blades
OPTIONAL EQUIPMENT
10ft Outfeed table #FT-10, 121”x49”x32” LWH……………………………………. call for pricing
10ft Infeed table #FT-10 ( when purchase Powered Slitter # PS-4816GT itself )…… call for pricing
Decoiler #DC-4820-2T, 48” wide x 20” coil ID, 2Tons=4,500LBS max coil weight....... call for pricing
    Extra set of slitter blades for PS-4816GT …….call for pricing
   Extra set of shear blades ……call for pricing

Package: The line of Power Slitter includes: 1 set Power Slitter # PS-4816GT, 1set outfeed table, and 1 set Decoiler #DC-4820-2T …………… call for pricing
Specifications:
PS-4816GT
Slitting and shearing capacity: width x thickness
mild steel(hot roll) Tensile 60,000PSI
stainless steel & cold roll, tensile 85,000PSI
soft aluminum, tensile 28,000PSI
min. thickness
Max. slitting length

48”x16Ga
48”x20Ga
48”x12Ga
30Ga
20ft, NC programmable
Shearing blade length
50”
Shearing blade rake angle
2 degree
Infeed/outfeed table height
32”
Slitting blades
6 pairs
Slitting feed speed
Shearing stroke
57 FPM
35
Slitting capacity: Number of cuts / strips
16Ga mild steel
18Ga mild steel
20Ga mild steel
22Ga-24Ga mild steel
26Ga-30Ga  mild steel

1 cut / 2 strips
2 cuts / 3 strips
3 cuts / 4 strips
4 cuts / 5 strips
6 cuts / 7 strips
Slitting motor
Shearing motor
3HP, 220V,1phase
 3HP, 220V, 1phase
Amperage draw 25A
Decoiler specifications
Manually operated
For coil size 48” width, 20” coil ID,
Max coil weight 2T = 4,500LBS
Dimensions: 71”x32”x39-1/2”
Machine weight
Shipping weight
2,850LBS
2,950LBS
Machine dimensions LxWxH
Shipping dimensions LxWxH
68” x 63” x 48”
70” x 65” x 51”
